FORD

Innertboard C.V.Joint Car Engine AT / MT Year A B C D
YAC No. Model
ESCAPE
FD-53-T01 2.3R 04- Inner 28-2 43 33 133
FD-53-T02 2.3L 04- 28 35 33 180
FD-68-T01 R 05-08 Inner 35 42 25 131.5
FD-68-T02 L 05-08 35 40 25 182.1
ESCORT
NFD-09-T01 R / L       23 40 22 128.5
FIESTA
FD-65-T01 1.6R MK7 12- 23 40 22 455
FD-65-T02 1.4R MK7 12- 26 40 22 469.5

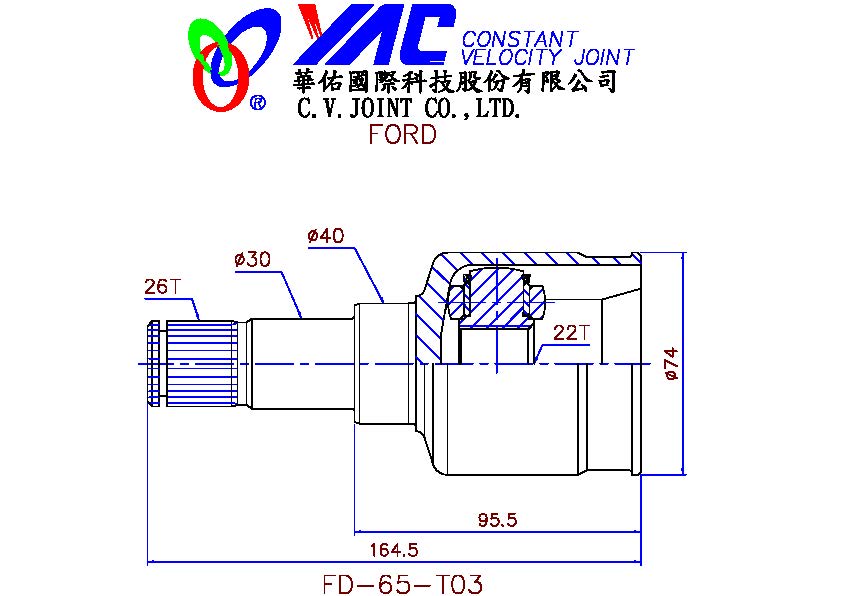

FD-65-T03 1.4L MK7 12- 26 40 22 164.5
FD-66-T01 1.4R 12- 34 40 21 164.5
FD-66-T03 1.0L 34 40 21 152.5
FOCUS
FD-37-T01 1.8 / 2.0R     03- 26 40 23 479.5
FD-37-T02 1.8 / 2.0L     03- 26 40 23 174
FD-62-T01 2.5R 26 40 26 620
FD-62-T02 2.5L 26 40 26 169.3
FD-73-T02 1.5LH 15- 35 35 32 236
FUSION
FD-69-T01 R 10-12 Inner 28-2 43 32 132
FD-69-T02 L 10-12 35 40 32 191.4
MONDEO

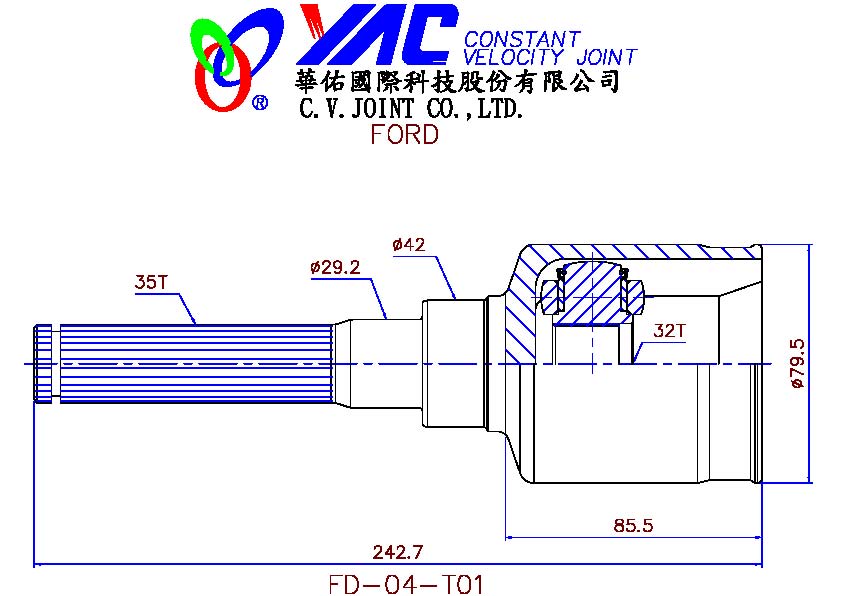

FD-04-T01 2.0L       35 42 32 242.7

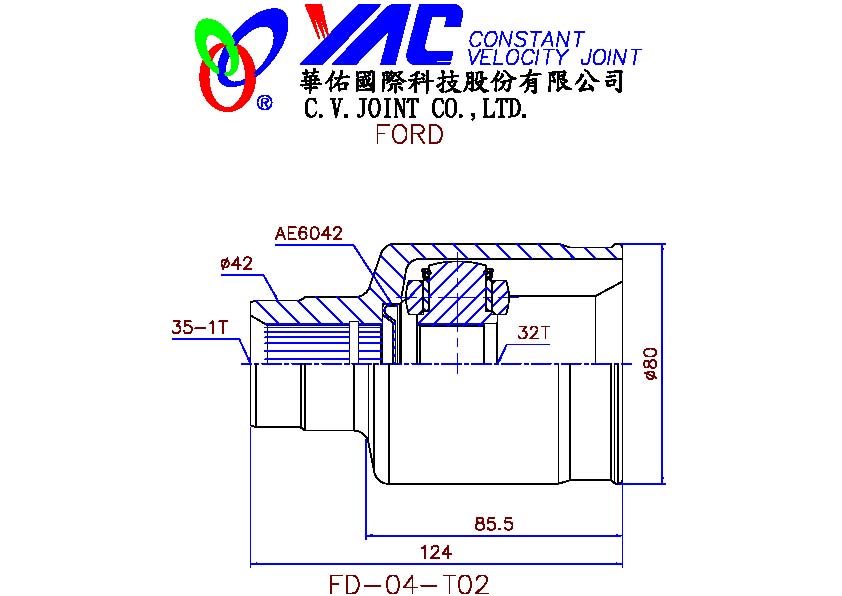

FD-04-T02 2.0R       Inner35-1 42 32 124
FD-04-T03 1.8R / L       26 40 32 168.5
FD-04-T04 2.0R       Inner35-1 42 25 120.3
FD-04-T05         35 40 25 168.5
RANGER
DFD-60-T01 R     06- 30 38 36 195.5
DFD-60-T02 L     06- Inner28-2 42 36 112.5
TEMPO
FD-11-T01 L       25 42 28 174.7
TIERRA

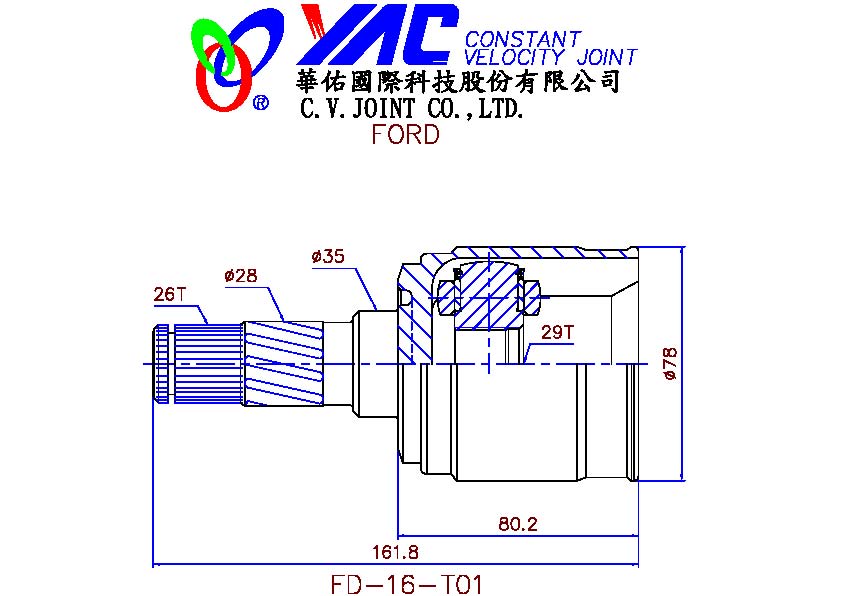

FD-16-T01 1.8R / L       26 35 29 161.8
