SUZUKI

Inboard C.V.Joint Car Engine AT / MT Year A B C D
YAC No. Model
ALTO
SI-01-T01         22 35 20 140.6
SI-05-T01         Inner 22 35 18 105.5
SI-91-T01 08-10 22 35 19 151.5
DSI-91-T02 LH 05- 22 35 19 165
SI-113-T01 800 K10 15- 22 35 24 146.5
CULTUS
SI-01-66 1.3  L       22 35 20 136.5
SI-01-T02 1.3       22 40 19 124
METRO
SI-01-T02       92-98 22 40 19 124
SWIFT
DSI-01-T01 L       22 35 19 140
DSI-01-T02 R       Inner 22 40 19 124
SI-01-T03 L       22 35 19 136.5
SI-01-T04 R       Inner 22 40 19 124

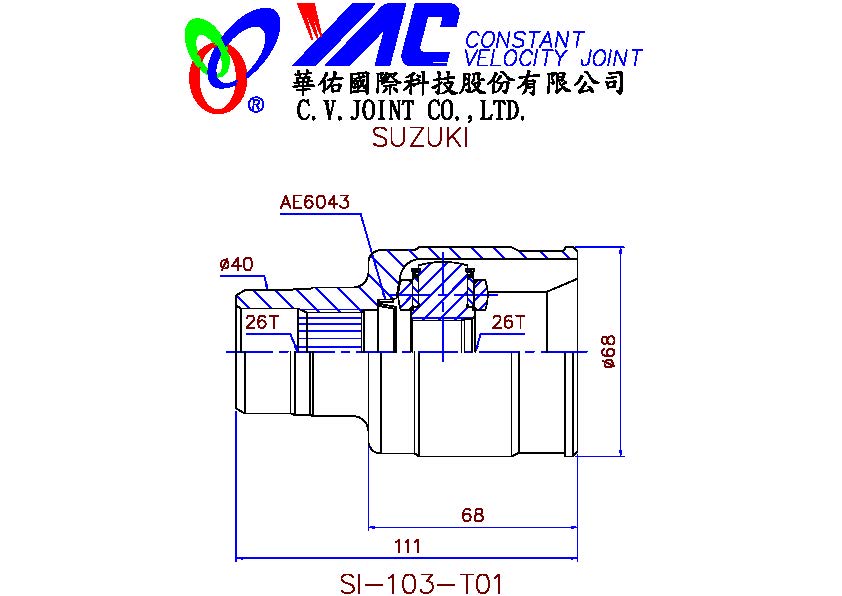

SI-103-T01 R 11-14 Inner 26 40 26 111
SI-103-T02 L 11-14 22 38 26 159.6
SI-112-T01 15- 22 40 20 138
SX4
SI-99-T04 L 1.6 14- 26 40 29 159
TUTTO
SI-01-T02         22 40 19 124
VITARA
SI-108-T01 R Grand 06-14 26 40 22 174
SI-108-T02 L - - 24 175
SI-109-T01 R 1.4T 4D K14C 16 Inner 28 42 23 118

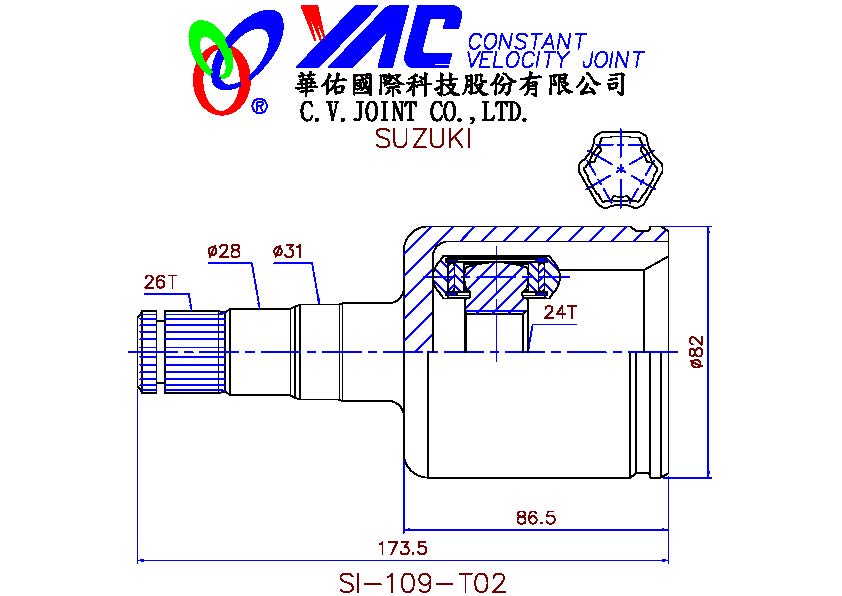

SI-109-T02 L 1.4T 4D K14C 16 26 31 24 173.5

SI-03-66   I     22 35 19 137
SI-03-66A   II     22 35 19 137
