TRIPODS |
||||||
|
YAC NO.
|
MODEL
|
NO. OF TEETH
A |
ROLLER O.D.
B |
ROLLER WIDTH
C |
SPIDER O.D.
D |
TYPE
|
| AI-26-P01 | Audi | 24 | 41.53 | 14.0 | 20.5 | Bearing |
| AI-28-P01 | 13'~ Audi Q5 | 24 | 41.56 | 14.0 | 20.5 | Bearing |
| BZ-08-P01 | 06'~ Benz B170 1.7 | 27 | 37.95 | 14.3 | 24.8 | Bearing |
| CH-32-P01 | Chrysler | 32 | 37.10 | 12.3 | 27.7 | TJ95 |

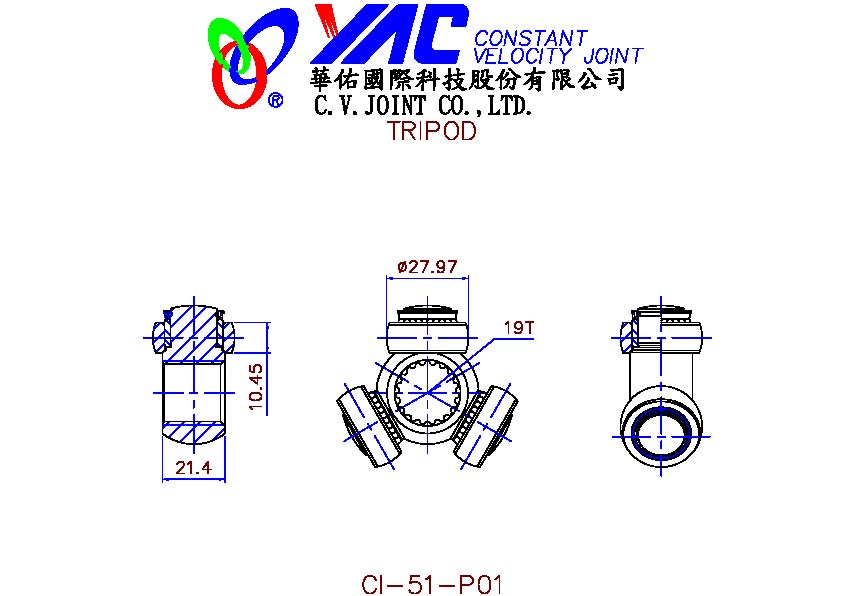

| CI-51-P01 | Citroen | 19 | 27.97 | 10.4 | 21.4 | TJ75 |
| CR-00-P01 | Chrysler | 25 | 34.19 | 14.4 | 30.0 | TJ100 |
| CR-02-P01 | Chrysler 2.5/2.6 | 23 | 36.25 | 14.5 | 26.0 | TJ92 |
| CR-08-P01 | Chrysler Concorde | 32 | 38.85 | 12.9 | 26.0 | TJ95 |
| CY-05-P01 | Chery Speranza Tigo | 24 | 35.50 | 12.0 | 26.9 | TJ92 |
| DD-01-P01 | 20 | 27.80 | 9.7 | 22.0 | TJ75 | |
| DO-09-P01 | Daewoo Nubira 1.6 | 29 | 34.10 | 12.9 | 26.0 | TJ87 |
| DO-22-P01 | 12' Daewoo Lanos MT | 22 | 31.87 | 10.5 | 24.0 | TJ79 |
| DU-03-P01 | 87'~89' Daihatsu G100 | 19 | 29.17 | 9.5 | 21.0 | TJ75 |
| FD-01-P01 | Ford Taurus | 22 | 29.94 | 12.0 | 24.7 | TJ82 |
| FD-31-P01 | 96'~ Ford Taurus | 32 | 38.10 | 12.0 | 22.5 | Bearing |
| FD-35-P01 | Ford Fiesta | 21 | 30.42 | 10.9 | 24.0 | TJ75 |
| FD-51-P01 | Ford Focus 1.8/2.0 | 23 | 39.87 | 13.0 | 19.0 | TJ87 |

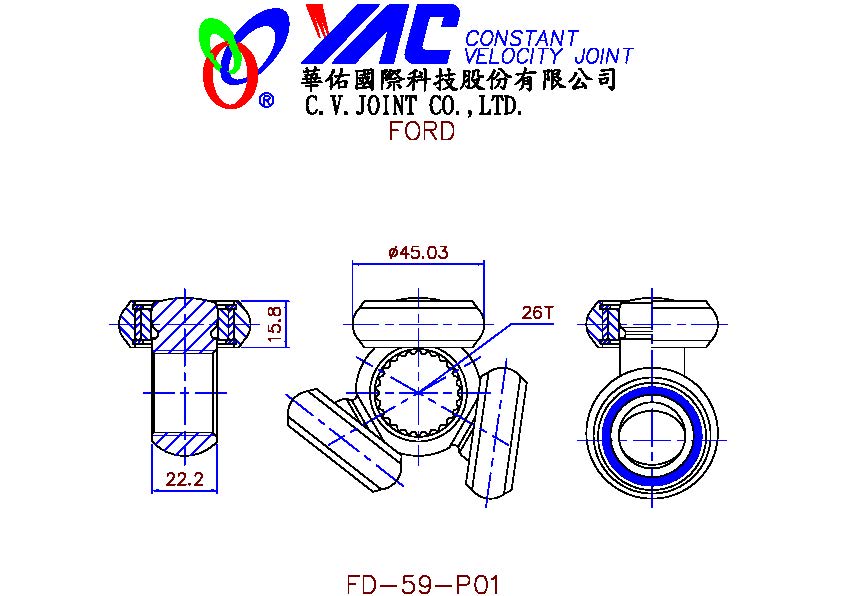

| FD-59-P01 | Ford Metrostar 2.3 Nissan Teana 3.5 |
26 | 45.03 | 15.8 | 22.2 | Bearing |
| FD-63-P01 | 08' Ford Mondeo Diesel 2.0 | 28 | 43.07 | 14.25 | 22.0 | Bearing |
| FD-71-P01 | 12'~ Focus 2.0 | 22 | 35.88 | 10.8 | 23.0 | Bearing |
| FD-73-P01 | 15' Ford Focus 1.5 | 32 | 41.10 | 14.9 | 20.8 | Bearing |
| FD-80-P01 | Ford | 34 | 39.65 | 12.5 | 30.0 | TJ95 |
| FD-85-P01 | 17'~ Ford Tourneo 2.0 | 29 | 50.50 | 17.8 | 25.5 | Bearing |
| FD-87-P01 | 17'~ Ford Focus 1.5 LH | 22 | 41.10 | 14.9 | 18.4 | Bearing |
| FD-87-P02 | 17'~ Ford Focus 1.5 RH | 22 | 36.30 | 9.2 | 24.0 | TJ92 |
| FD-90-P01 | 19'~ Ford Focus Turbo 1.5 RH | 22 | 29.97 | 12.0 | 25.0 | TJ82 |
| FI-51-P01 | Fiat | 39 | 38.80 | 13.6 | 28.0 | TJ100 |
| FI-53-P01 | Fiat | 20 | 27.97 | 10.4 | 23.9 | TJ79 |
| FT-01-P01 | Fiat 85s | 22 | 31.90 | 10.8 | 23.5 | TJ75 |
| FT-03-P01 | Fiat Uno | 20 | 31.94 | 10.4 | 23.7 | TJ75 |
| FT-33-P01 | Fiat Uno Diesel | 27 | 31.94 | 10.4 | 24.0 | TJ75 |
| FT-35-P01 | Fiat Sienna Diesel | 22 | 31.94 | 10.4 | 23.7 | TJ75 |
| FT-36-P01 | 06' Fiat Ducato 2.3 | 29 | 42.10 | 14.7 | 32.8 | K10 |
| FT-40-P01 | Fiat | 24 | 39.20 | 11.4 | 24.9 | TJ95 |
| GM-10-P01 | G.M. Blazer | 35 | 43.00 | 17.2 | 33.0 | K10 |
| GM-19-P01 | General Motor | 45 | 43.00 | 17.2 | 34.3 | K20 |
| GM-30-P01 | 06' G.M. Chevy Optra | 24 | 41.97 | 14.7 | 27.0 | TJ92 |
| GM-43-P01 | Chevrolet Cruze | 31 | 44.04 | 14.6 | 19.9 | Bearing |
| GM-46-P01 | 05' Chevrolet Optra | 29 | 33.48 | 10.2 | 23.0 | TJ87 |
| GM-59-P01 | 13'~ Chevrolet Trax 1.4 | 24 | 39.20 | 11.4 | 25.0 | TJ95 |
| HA-19-P01 | Honda K800/City 1.3 | 28 | 34.55 | 8.0 | 23.4 | Bearing |
| HA-33-P01 | 01'~03' Honda Civic 1.7RH | 22 | 39.87 | 13.0 | 19.0 | Bearing |
| HA-33-P02 | 01'~03' Honda Civic 1.7LH | 23 | 33.90 | 11.7 | 26.6 | TJ87 |
| HA-53-P01 | Honda Civic Jazz 1.5 | 28 | 33.05 | 10.9 | 23.4 | Bearing |
| HA-54-P01 | 06' Honda Civic K12 1.8 | 28 | 33.00 | 13.0 | 23.4 | Bearing |
| HA-65-P01 | Honda Fit 1.5 | 27 | 33.00 | 13.0 | 23.4 | Bearing |
| HA-84-P01 | Honda | 23 | 39.87 | 13.0 | 19.8 | Bearing |
| HA-85-P01 | Honda | 22 | 32.50 | 10.9 | 24.8 | TJ82 |
| HA-90-P01 | 13'~17' Honda CR-V 2.0/2.4 | 30 | 36.50 | 13.55 | 22.95 | Bearing |
| HA-91-P01 | Honda | 30 | 38.1 | 16.4 | 23.0 | Bearing |
| IR-19-P01 | Kia Pride | 19 | 27.76 | 9.2 | 22.0 | TJ79 |
| IR-20-P01 | Kia Pride | 20 | 27.76 | 9.2 | 22.0 | TJ79 |
| LA-01-P01 | Lada Niva(Jeep) | 22 | 32.00 | 11.1 | 23.5 | TJ82 |
| MA-02-P01 | Kia Rio | 21 | 30.00 | 11.0 | 24.0 | TJ82 |
| MA-02-P02 | Kia Rio | 21 | 32.36 | 10.8 | 24.0 | TJ82 |
| MA-02-P03 | Ford Laser | 21 | 32.00 | 11.0 | 22.0 | TJ82 |
| MA-04-P01 | 92' Ford Laser 1.6 | 22 | 32.36 | 10.8 | 23.0 | TJ82 |
| MA-29-P03 | Mazda 323 | 23 | 29.93 | 12.0 | 25.9 | TJ87 |
| MA-67-P01 | 05' Mazda 5/2.0 | 24 | 41.56 | 14.0 | 20.5 | TJ82 |
| MA-69-P01 | Kia Cerato | 22 | 38.78 | 13.8 | 25.0 | TJ87 |
| MA-85-P01 | Kia Pride-ABS | 20 | 29.25 | 9.8 | 22.0 | TJ79 |
| MA-86-P01 | Kia Pride-ABS | 19 | 29.25 | 9.8 | 21.0 | TJ79 |
| MA-94-P01 | 10' Mazda5 2.0 12' Toyota Altis 1.8 |
32 | 42.20 | 13.4 | 25.8 | Bearing |
| MA-100-P01 | 09'~11' Mazda 5/2.0 | 24 | 41.56 | 14.0 | 20.5 | Bearing |
| MA-106-P01 | Mazda CX7 | 33 | 44.36 | 14.0 | 26.6 | Bearing |
| MA-107-P01 | 16'~ Mazda 3 2.0 | 30 | 39.60 | 12.7 | 24.5 | Bearing |

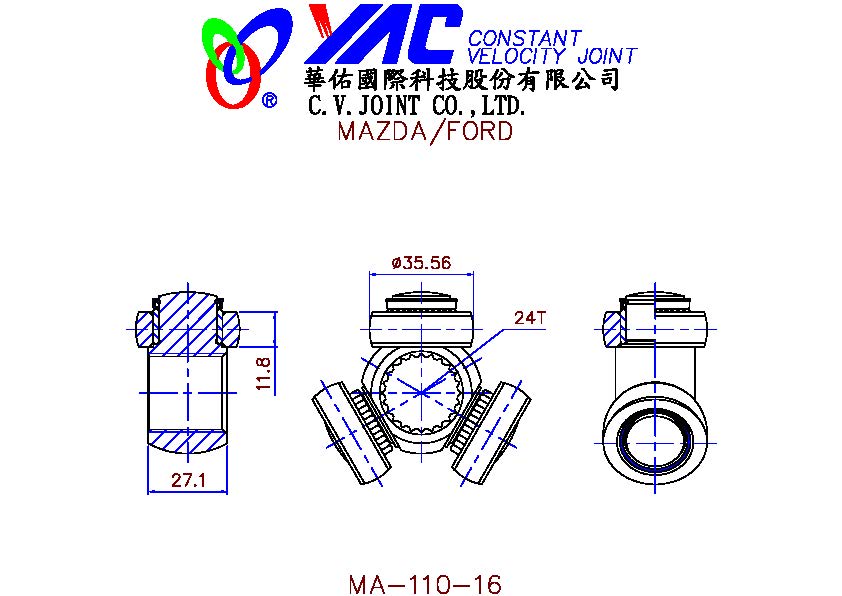

| MA-110-P01 | 06'~ Mazda 5 MT | 24 | 35.56 | 11.8 | 27.1 | TJ92 |
| MC-04-P01 | Toyota | 23 | 29.93 | 12.0 | 26.0 | TJ82 |
| MC-05-P01 | Fiat | 20 | 32.00 | 11.0 | 23.9 | TJ79 |
| MC-06-P01 | Bantan | 22 | 29.95 | 11.9 | 24.8 | TJ82 |
| MC-08-P01 | Fiat Uno 1.1 | 19 | 29.17 | 9.5 | 23.7 | TJ79 |
| MC-09-P01 | 20 | 29.17 | 9.5 | 23.9 | TJ79 | |
| MC-09-P02 | 19 | 29.17 | 9.5 | 23.9 | TJ79 | |
| MI-06-P01 | 07' Mitsubishi Lancer | 28 | 30.00 | 12.0 | 28.5 | TJ75 |
| MI-06-P02 | Mitsubishi Eclipse 1.8 | 23 | 34.36 | 11.3 | 26.0 | TJ87 |
| MI-10-P01 | Mitsubishi Mirage 1.6 | 30 | 34.00 | 12.0 | 24.0 | TJ82 |
| MI-33-P01 | 00'~02' Mitsubishi Virage 1.8 | 30 | 35.50 | 11.7 | 25.8 | TJ87 |
| MI-63-P01 | Hyundai Trajet | 34 | 39.65 | 13.3 | 30.0 | TJ95 |
| MI-76-P01 | 07' Mitsubishi Colt Plus 1.6 13' Colt Plus 1.5 |
28 | 31.15 | 10.3 | 22.0 | TJ82 |
| MI-79-P01 | Hyundai Azeera | 30 | 32.50 | 10.9 | 24.5 | TJ82 |
| MI-79-P02 | Mitsubishi Lancer | 30 | 32.12 | 11.0 | 24.5 | TJ82 |
| MI-104-P01 | Hyundai Viva | 29 | 32.36 | 10.8 | 23.0 | TJ82 |
| MI-105-P01 | 07' Mitsubishi Lancer Forits 2.0 | 33 | 37.50 | 9.8 | 26.6 | TJ92 |
| MI-113-P01 | Hyundai Santa Fe | 36 | 47.8 | 15.8 | 29 | Bearing |
| MI-130-P01 | Hyundai Ix35 | 23 | 40.38 | 14.2 | 26.1 | TJ95 |
| MI-143-P01 | Hyundai | 20 | 29.2 | 9.8 | 23.00 | TJ75 |
| MI-153-P01 | Hyundai ix35 Diesel | 25 | 45.00 | 13.8 | 29.0 | Bearing |

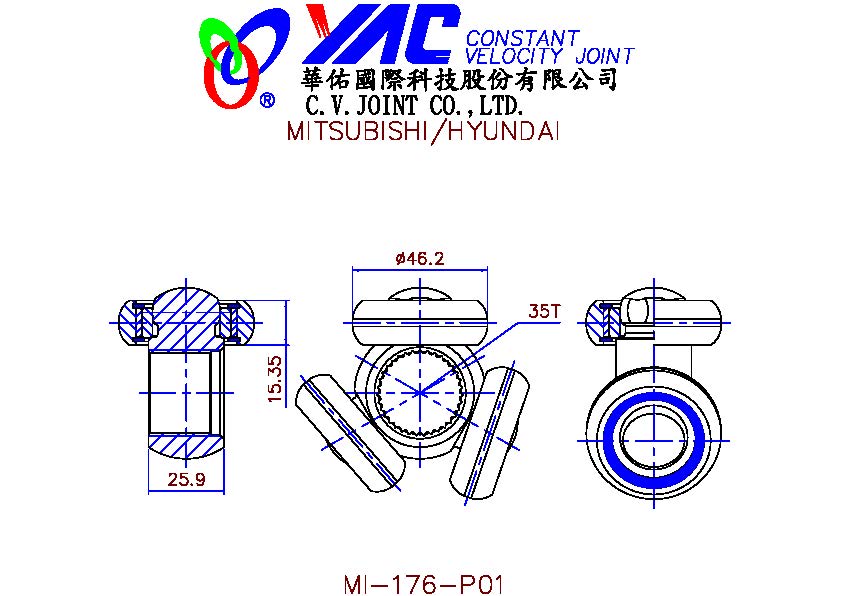

| MI-176-P01 | 14'~ Hyundai Santa FE | 35 | 46.20 | 15.3 | 25.9 | Bearing |
| NA-01-P01 | Lada Niva | 22 | 30.00 | 14.3 | 23.7 | TJ82 |
| NN-01-P01 | Nissan 311/312 Sunny 1.3 | 23 | 32.91 | 11.9 | 24.0 | TJ82 |
| NN-09-P01 | Nissan New Sentra 1.6 | 30 | 34.36 | 11.3 | 24.5 | TJ87 |
| NN-16-P01 | Nissan Tsuru I/II | 24 | 29.95 | 11.9 | 26.8 | TJ87 |
| NN-65-P01 | Nissan X-Trail | 26 | 43.21 | 14.5 | 22.0 | Bearing |
| NN-79-P01 | 06' Nissan Tiida 1.6 | 29 | 33.17 | 8.8 | 23.0 | TJ82 |
| NN-97-P01 | 08'~ Nissan Teana 2.0 | 24 | 35.40 | 11.8 | 27.0 | TJ92 |
| NN-123-P01 | 15'~ Nissan X'-Trail 2.0 | 33 | 40.80 | 13.7 | 26.6 | Bearing |
| NN-124-P01 | Nissan | 21 | 34.60 | 10.9 | 22.4 | TJ92 |
| PE-51-P01 | Peugeot | 29 | 33.00 | 13.2 | 24.0 | TJ87 |
| PE-83-P01 | Peugeot | 22 | 32.36 | 10.8 | 23.5 | TJ82 |
| PE-90-P01 | Peugeot | 22 | 31.95 | 10.8 | 25.3 | TJ82 |
| PJ1338 | Peugeot | 45 | 50.18 | 15.7 | 40.05 | TJ110 |
| PT-01-P01 | Peugeot 305 | 34 | 32.97 | 12.7 | 26.0 | TJ87 |
| PT-01-P02 | Peugeot 405 | 30 | 31.90 | 10.8 | 23.9 | TJ82 |
| PT-11-P01 | 87'~92' Peugeot 405 | 22 | 32.04 | 10.8 | 24.1 | TJ82 |
| PT-15-P01 | 99'~02' Peugeot 206 | 21 | 32.00 | 10.5 | 24.0 | TJ79 |
| PT-21-P01 | Peugeot 206 | 21 | 29.95 | 11.9 | 24.0 | TJ79 |
| PT-34-P01 | Peugeot | 34 | 32.99 | 12.7 | 26.2 | TJ87 |
| PT-34-P02 | Peugeot | 34 | 31.95 | 10.8 | 26.1 | TJ82 |
| PT-57-P01 | Peugeot 504 | 25 | 33.93 | 14.4 | 30.2 | TJ87 |
| PT-61-P01 | Peugeot | 27 | 27.97 | 10.4 | 21.8 | TJ75 |
| RE-51-P01 | Renault | 25 | 37.10 | 12.3 | 28.0 | TJ92 |
| RE-52-P01 | Renault | 30 | 33.95 | 14.4 | 31.7 | K10 |
| RE-53-P01 | Renault | 30 | 29.97 | 12.0 | 24.0 | TJ82 |
| RE-54-P01 | Renault | 29 | 29.93 | 12.0 | 24.0 | TJ82 |
| RT-01-P01 | Renault 9 | 22 | 29.96 | 10.0 | 24.0 | TJ82 |
| RT-14-P01 | Renault Maste 2.5/2.8 | 25 | 37.06 | 12.8 | 27.6 | TJ92 |
| RT-28-P01 | Renault Scenic | 28 | 32.36 | 8.5 | 22.0 | TJ82 |
| RT-41-P01 | Renault | 30 | 30.10 | 11.9 | 25.0 | TJ82 |
| SA-01-P01 | Skoda | 30 | 32.00 | 11.0 | 24.0 | TJ82 |
| SA-01-P02 | Skoda | 30 | 32.00 | 11.0 | 24.0 | TJ82 |
| SA-24-P01 | 24 | 35.44 | 11.8 | 26.9 | TJ92 | |
| SA-27-P01 | 27 | 41.50 | 12.3 | 35.8 | K10 | |
| SA-29-P01 | 29 | 34.10 | 11.3 | 26.0 | TJ92 | |
| SA-32-P01 | 32 | 37.04 | 12.3 | 27.6 | TJ95 | |
| SI-03-P01 | Suzuki I | 19 | 27.97 | 10.4 | 24.0 | TJ79 |
| SI-03-P02 | Suzuki Swift | 19 | 29.32 | 10.0 | 24.0 | TJ75 |
| SI-05-P01 | Suzuki Maruti | 18 | 29.32 | 10.0 | 20.0 | TJ75 |
| SI-05-P02 | Suzuki Alto | 18 | 28.95 | 9.5 | 20.0 | TJ75 |
| SI-103-P01 | Suzuki 11'~14' Swief 1.4 | 26 | 29.7 | 8.3 | 21.0 | TJ75 |
| SI-118-P01 | Suzuki Grand Vitara | 24 | 35.56 | 11.8 | 27.0 | TJ92 |
| SU-32-P01 | 02' Subaru Forester 2.5 EJ25 | 29 | 39.87 | 13.0 | 19.0 | TJ87 |
| SU-35-P01 | 12' Subaru Forester | 29 | 38.90 | 12.2 | 23.0 | Bearing |
| SU-41-P01 | Subaru WRX | 23 | 39.87 | 13.0 | 19.8 | Bearing |
| TA-01-P01 | Toyota Corona 1.6 | 23 | 29.93 | 12.0 | 26.0 | TJ87 |
| TA-03-P01 | Toyota Corolla 1.8 | 29 | 34.10 | 12.9 | 25.9 | TJ87 |
| TA-05-P01 | Toyota Camry 2.0 | 23 | 38.14 | 12.3 | 30.0 | TJ95 |
| TA-05-P02 | Toyota Camry 2.0 | 23 | 35.50 | 12.3 | 30.0 | TJ95 |
| TA-18-P01 | 94'~98' Toyota Pick-Up | 24 | 43.00 | 17.2 | 34.0 | K10 |
| TA-18-P02 | Toyota Hilux LN106 | 24 | 47.95 | 15.8 | 34.0 | K30 |
| TA-27-P01 | 96'~ Toyota 4 Runner | 24 | 48.00 | 17.2 | 34.0 | K10 |
| TA-41-P01 | 02' Toyota Camry 2.0 | 26 | 36.46 | 12.3 | 22.0 | TJ95 |
| TA-41-P02 | 02' Toyota Camry 2.0 | 27 | 36.46 | 12.3 | 22.0 | TJ95 |
| TA-41-P03 | 02' Toyota Camry /04' Wish | 27 | 43.21 | 14.5 | 22.0 | TJ92 |
| TA-71-P01 | 96'~ Toyota 4 Runner | 29 | 48.30 | 17.0 | 24.0 | TJ100 |
| TA-85-P01 | Toyota Camry 3.5 | 27 | 46.70 | 16.2 | 23.1 | Bearing |
| TA-91-P01 | 03'~09' Toyota Prado FJ120 | 30 | 48.30 | 17.0 | 24.0 | Bearing |
| TA-107-P01 | 09'~ Toyota Corolla | 23 | 33.90 | 11.7 | 23.9 | TJ87 |
| TA-108-P01 | 14' Toyota Corolla | 25 | 42.20 | 14.2 | 23.0 | Bearing |
| TA-138-P01 | Toyota | 24 | 41.44 | 14.0 | 20.5 | Bearing |
| TA-139-P01 | Toyota | 34 | 42.35 | 14.0 | 32.3 | K30 |
| TA-141-P01 | 19' Toyota Altis | 32 | 36.76 | 9.5 | 25.8 | TJ92 |

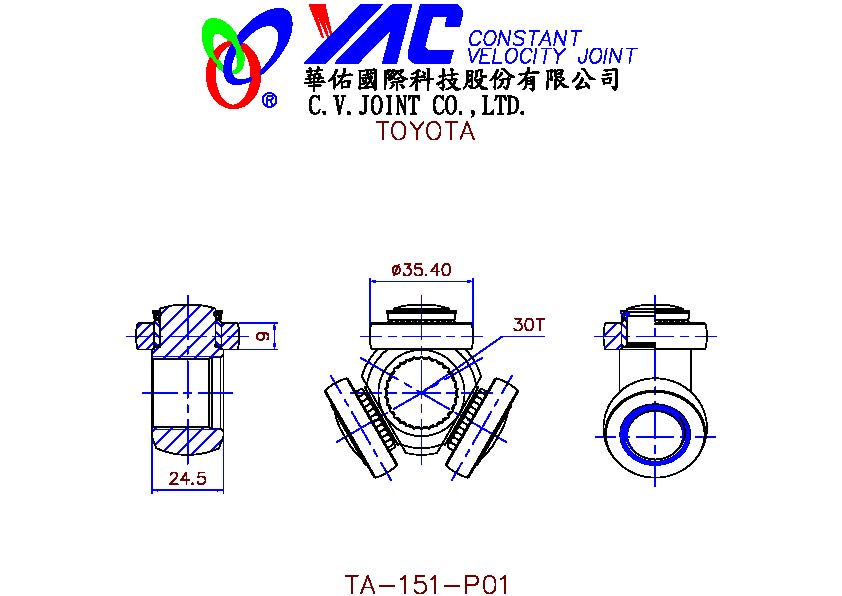

| TA-151-P01 | 19' Toyota Altis 1.8 | 30 | 35.40 | 9.0 | 24.5 | TJ87 |
| TA-153-P01 | 14'~17' Lexus NX300h | 26 | 44.94 | 15.8 | 22.2 | Bearing |
| TA-156-P01 | 23' RX350 | 27 | 45.15 | 13.95 | 23.6 | Bearing |
| TP-02-P01 | 32 | 38.10 | 12.0 | 22.5 | Bearing | |
| TP-03-P01 | 33 | 38.10 | 12.0 | 23.0 | Bearing | |
| TP-05-P01 | 32 | 40.94 | 12.0 | 25.6 | Bearing | |
| TP-09-P01 | 28 | 29.93 | 12.0 | 24.7 | TJ82 | |
| TP-10-P01 | 25 | 33.92 | 14.4 | 30.1 | TJ100 | |
| TP-16-P01 | 08'~ Honda CR-V | 32 | 38.00 | 9.9 | 22.9 | Bearing |
| TP-20-P01 | 30 | 34.50 | 7.9 | 22.9 | Bearing | |
| VW-01-P04 | 94' Volkswagen Passat | 34 | 43.21 | 14.5 | 22.0 | Bearing |
| VW-01-P05 | 94' Volkswagen Passat | 34 | 40.95 | 12.0 | 23.9 | TJ95 |
| VW-01-P06 | Volkswagen Santana 2.0 | 34 | 40.94 | 12.0 | 23.8 | Bearing |
| VW-10-P01 | Volkswagen Bola/Polo | 30 | 39.30 | 13.0 | 19.9 | Bearing |
| VW-33-P01 | 05'~08' Volkswagen Golf 1.6 | 32 | 41.53 | 14.0 | 20.6 | Bearing |
| VW-36-P01 | Volkswagen Polo 1.6 | 22 | 38.20 | 13.0 | 19.0 | Bearing |
| YC-01-P01 | 22 | 28.87 | 10.8 | 21.7 | TJ79 | |

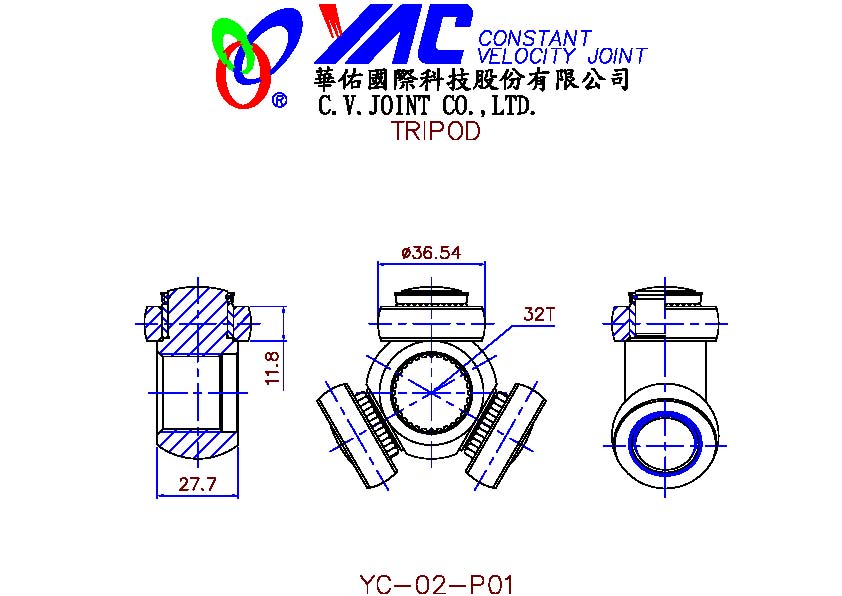

| YC-02-P01 | Chrysler | 32 | 36.54 | 11.8 | 27.7 | TJ95 |
| YC-03-P01 | 94' Passart 2.0 | 33 | 36.46 | 12.3 | 30.6 | TJ100 |
| YC-04-P01 | Virage 1.8 | 30 | 35.56 | 11.8 | 25.8 | TJ92 |
| YC-06-P01 | 32 | 33.94 | 14.5 | 32.1 | K10 | |
| YC-11-P01 | 20 | 31.94 | 10.4 | 24.0 | TJ75 | |
| YC-12-P01 | 25 | 33.94 | 14.5 | 30.3 | TJ100 | |
| YC-13-P01 | 20 | 31.95 | 10.8 | 23.6 | TJ82 | |
| YC-15-P01 | 20 | 27.80 | 9.7 | 23.9 | TJ79 | |
| YC-16-P01 | 20 | 31.93 | 10.5 | 23.7 | TJ82 | |
| YC-17-P01 | 22 | 31.93 | 10.5 | 23.7 | TJ82 | |
| YC-18-P01 | 22 | 29.94 | 11.9 | 24.3 | TJ82 | |
| YC-19-P01 | 25 | 37.09 | 12.3 | 27.8 | TJ95 | |
| YC-20-P01 | 27 | 33.94 | 14.4 | 30.0 | TJ95 | |
| YC-21-P01 | 37 | 50.17 | 16.2 | 30.0 | TJ95 | |
| YC-22-P01 | 34 | 33.00 | 12.1 | 26.0 | TJ87 | |
| YC-23-P01 | 29 | 32.97 | 12.6 | 24.0 | TJ82 | |

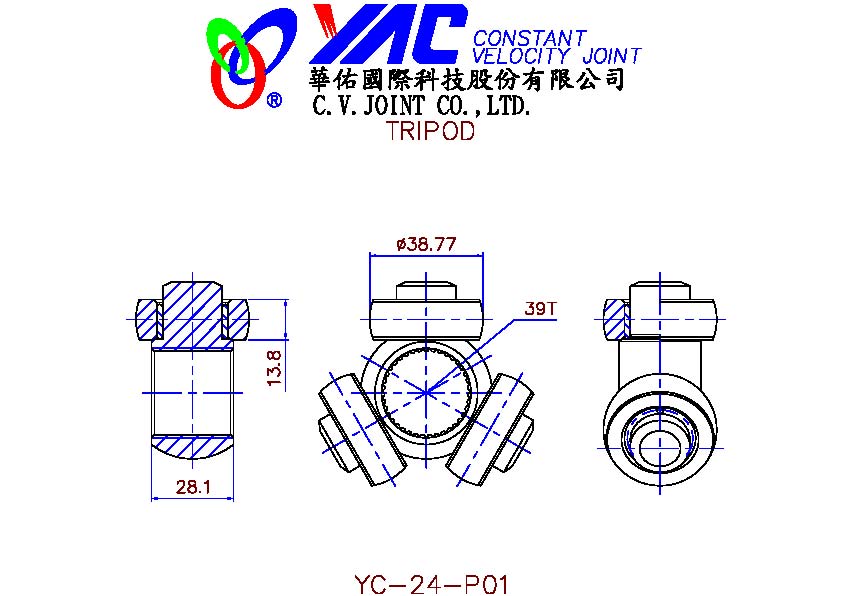

| YC-24-P01 | 39 | 38.77 | 13.7 | 28.1 | TJ95 | |
| YC-25-P01 | Honda Chapa | 32 | 38.10 | 10.0 | 22.9 | Bearing |
| YC-26-P01 | 32 | 37.03 | 12.2 | 27.0 | TJ92 | |
| YC-27-P01 | 23 | 33.90 | 14.0 | 27.0 | TJ92 | |
| YC-28-P01 | 22 | 32.12 | 11.0 | 23.7 | TJ79 | |
| YC-29-P01 | 27 | 46.76 | 16.2 | 23.1 | Bearing | |
| YC-30-P01 | 14'~ Outlander | 35 | 46.10 | 15.1 | 28.0 | Bearing |
| YC-31-P01 | 19 | 29.18 | 9.8 | 21.9 | TJ75 | |
| YC-32-P01 | 22 | 31.90 | 10.8 | 22.9 | TJ82 | |
| YC-33-P01 | 22 | 29.94 | 11.9 | 26.2 | TJ82 | |
| YC-34-P01 | 28 | 31.93 | 10.5 | 24.0 | TJ87 | |
| YC-35-P01 | Fiat Palio | 28 | 31.93 | 10.5 | 24.0 | TJ82 |
| YC-37-P01 | 27 | 34.10 | 14.4 | 30.2 | TJ87 | |
| YC-38-P01 | 34 | 36.90 | 15.1 | 28.3 | TJ95 | |
| YC-39-P01 | 19 | 32.20 | 10.7 | 20.2 | TJ75 | |
|
||||
