OPEL

Outboard C.V.Joint Car Engine AT/MT Year A
No. of
Outer
Teeth
B
Seal
Dia
mm
C
No. of
Inner
Teeth
D
Thread
F
Internal
Groove
G
Overall
Heibht
ABS
No. of
ABS
Teeth
YAC No. Model
AGILA
OL-22 1.0/1.2 12V  ABS     23 49 20 18/1.5 F2 139 43
ASCONA
OL-01 1.3/1.6 50-55kw   81-88 22 52 22 20/1.0 F3 146
OL-05 1.6 Inc Diesel AT&MT 81-88 33 52 25 20/1.0 F3 170.5 29/43
1.8 Inc Diesel 82-88
2.0 73/85/95kw
OL-23 16.D     81-88 33 52 25 20/1.5 F3 170
1.6S/1.8i/2.0i  GT   82-88
ASTRA
OL-02 1.6 (Taiwan) AT&MT 93- 22 52 30 20/1.0 F1 150
OL-05 1.7 Diesel MT 90- 33 52 25 20/1.0 F3 170.5 29/43
1.7  Turbo Diesel 92-
1.8/2.0 Inc GSI  16V W/ABS 91-
OL-06 1.6 ABS (Taiwan) AT&MT 93- 22 52 30 20/1.0 F1 150 29/43
OL-07 1.5/1.6 (Indian)   94- 22 52 30 20/1.0 F1 148.5
OL-10 1.8   AT&MT 96- 33 52 23 20/1.0 F1 165.5
2.0 All ABS
OL-11 1.6  16V 74kw  X16XEL   98- 33 52 22 22/1.0 F1 165.5
1.7  Turbo 60kw  X17DTL
OL-12 1.4/1.6       33 51.8 22 19/1.0 F3 156 29/43
OL-15 1.4/1.6       33 51.8 22 20/1.0 F3 156 29/43

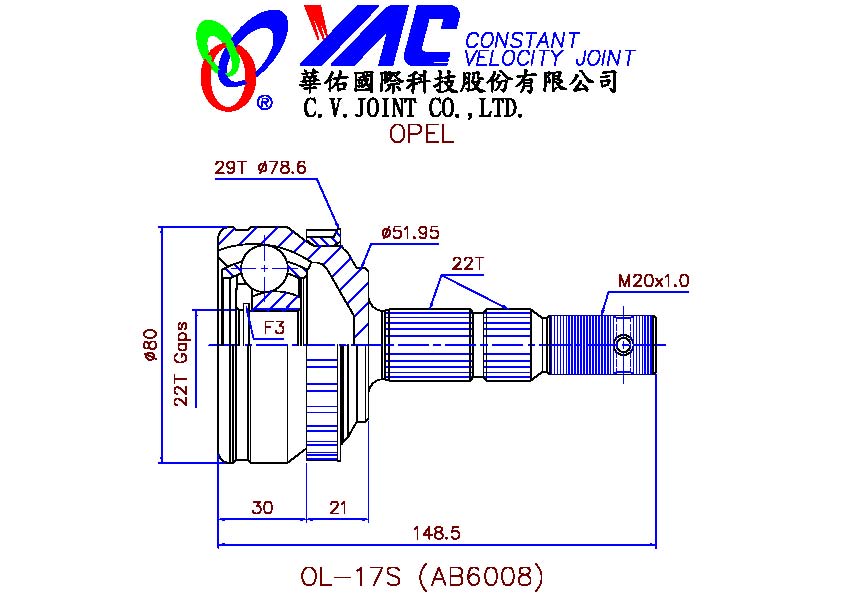

OL-17         22 51.95 22 20/1.0 F3 148.5 29/43
OL-23 1.7 TDS   81-88 33 52 25 20/1.5 F3 170
1.8i 16V/2.0i 16V GSI   91-98
OL-28         33 52 24 22/1.5 F2 158
CALIBRA
OL-05 2.0 Inc  16V MT 89- 33 52 25 20/1.0 F3 170.5 29/43
2.0 Inc  16V  ABS 91-
OL-23 1.6 D     81-88 33 52 25 20/1.5 F3 170
1.6 S/1.8 i     82-88
1.7 D/1.7 TD   91-95
1.8 i/2.0 i/2.0 i  16V   91-95
2.0 i GT   82-88
2.0 i 4WD 16V   89-98
2.0 i 4WD 16V  Turbo   91-97
OL-25         33 52 22 20/1.0 F3 165.5
COMBO
OL-27 1.2/1.4/1.7 D   94- 22 52 28 20/1.0 F3 152
CORSA-A
OL-01 1.5 DS 49kw  Turbo AT&MT 87-93 22 52 22 20/1.0 F3 146
1.6 72-74kw
OL-03 1.0/1.2 33-40kw   82-93 22 52 28 20/1.0 F3 152
1.4 44-60kw
1.5 DS 37kw
OL-27 1.0-1.5     82-93 22 52 28 20/1.0 F3 152
CORSA-B
OL-04 1.2 33/44kw  ABS AT&MT 94- 22 52 28 20/1.0 F3 150 29/43
1.4 44/60kw  ABS
OL-16 3-Cyl W/&W/O ABS AT&MT 98- 22 52 28 20/1.0 F1 152
OL-17         22 51.95 22 20/1.0 F3 148.5 29/43
OL-27 1.0-1.7     93-00 22 52 28 20/1.0 F3 152
CORSA-3 CYL
OL-20 1.0     02- 22 52 28 20/1.0 F3 151.5 29
OL-24 1.2       22 52 28 20/1.0 F3 151.5 29
OL-35         22 52 22 20/1.0 F1 144
KADETT-D
OL-01 1.0 29/37kw AT&MT 81-84 22 52 22 20/1.0 F3 146
1.2 39/44kw
1.3 55kw
OL-05 1.6 S 66kw AT&MT 81-84 33 52 25 20/1.0 F3 170.5 29/43
1.6 DS 39kw
1.8 E&S 84kw
OL-18         22 51.6 22 20/1.0 F3 146
OL-23 1.6/1.6 D/1.8   81-84 33 52 25 20/1.5 F3 170
KADETT-E
OL-01 1.2 40kw AT&MT 84-91 22 52 22 20/1.0 F3 146
1.3 44/55kw
1.4 40/53kw
1.6 55kw  W/ABS
OL-05 1.6 S 66kw AT&MT 84-91 33 52 25 20/1.0 F3 170.5 29/43
1.8 62/85kw
2.0 85kw
2.0  16V 110kw  W/ABS
OL-23 1.6/1.8/2.0/ 2.0 16V   84-91 33 52 25 20/1.5 F3 170
1.7 D/1.7 TD
TIGRA
OL-17         22 51.95 22 20/1.0 F3 148.5 29/43
VECTRA
OL-01 1.4 44/60kw  ABS AT&MT 87-93 22 52 22 20/1.0 F3 146
1.6 55/74kw  ABS
OL-05 1.7 DS 42kw  ABS AT&MT 88-91 33 52 25 20/1.0 F3 170.5 29/43
1.7 DS 60kw  Turbo 91-93
1.8 66kw  ABS 91-93
2.0 74/95kw  ABS 91-93
2.0  16V 100/110kw 91-93
2.0  4WD 85/110kw  W/ABS 91-93
OL-08 2.0 ABS  Ready AT&MT 96- 33 52 25 20/1.0 F3 164.5 29/43
OL-10 1.8   AT&MT 96- 33 52 23 20/1.0 F1 165.5
2.0 All ABS
OL-17         22 51.95 22 20/1.0 F3 148.5 29/43
OL-23 1.8 i/2.0 i/2.0 I  16V  4WD   91-95 33 52 25 20/1.5 F3 170
1.7 D/1.7 TD
OL-26 1.8 16V     30 53 25 24/1.5 F3 165.5
OL-31         33 52 24 20/1.0 F2 168

OL-13         22 51.9 22 20/1.0 F3 150 29/43
OL-14         22 51.95 22 20/1.0 F2 148.5 29/43
OL-19         33 51.95 28 20/1.0 F3 158
OL-21         33 52 24 20/1.0 F2 165.5
OL-34         22 51.9 28 20/1.5 F3 156 29T
OL-36         22 52 22 20/1.5 F3 149.5
