| Inboard C.V.Joint | Car | Engine | AT / MT | Year | A | B | C | D |
|---|---|---|---|---|---|---|---|---|
| YAC No. | Model | |||||||
| ATTERAGE | ||||||||
| MI-149-T01 | A13 | 13-14 | 25 | 40 | 26 | 153.5 | ||
| MI-180-T01 | 153.2 | |||||||
| AVANTE | ||||||||
| MI-75-T01 | 07- | 27 | 41 | 22 | 148 | |||
| COLT | ||||||||
| MI-06-T01 | AT&MT | 25 | 41 | 23 | 159.4 | |||
| MI-06-T05 | 22 | |||||||
| MI-76-T02 | 1.5 | Plus | 13- | 23 | 38 | 28 | 155.8 | |
| DELICA | ||||||||
| MI-13-T01 | 2.5R | - | - | 25 | 82 | |||
| MI-13-T02 | 2.5L | 28 | 34.7 | 185.8 | ||||
| EXCEL | ||||||||
| MI-02-T01 | 92-96 | 25 | 35 | 22 | 144.2 | |||
| MI-02-T02 | 85 | 143.5 | ||||||
| FORITS | ||||||||
| MI-105-T01 | 2.0 | 07- | 27 | 40 | 33 | 161 | ||
| GALANT | ||||||||
| MI-06-T01 | 2.0 | 25 | 41 | 23 | 159.4 | |||
| MI-06-T05 | 1.8 | 88-90 | 22 | |||||
| MI-85-T01 | 2.0 | AT | 94-97 | 35 | 30 | 155.5 | ||
| GRUNDER | ||||||||
| MI-58-T01 | 2.4 | 27 | 41 | 32 | 155.5 | |||
| LANCER | ||||||||
| MI-02-T03 | 25 | 35 | 22 | 132 | ||||
| MI-03-T01 | 1.6R / L | 25 | 157 | |||||
| MI-06-T03 | 04- | 41 | 23 | 159.4 | ||||
| MI-06-T04 | 30 | |||||||
| MI-06-T05 | AT&MT | 87-92 | 22 | |||||
| MI-06-T07 | 35 | 28 | 143.5 | |||||
| MI-06-T08 | 41 | 30 | 159.4 | |||||
| MI-102-T01 | 27 | 149.6 | ||||||
| MI-164-T01 | Mirage | 1.6 | MT | 92- | 25 | 35 | 23 | 152.9 |
| MI-173-T01 | 1.6B | 04-07 | 41 | 29 | 149.5 | |||
| LIBERO | ||||||||
| MI-06-T05 | AT&MT | 25 | 41 | 22 | 159.4 | |||
| MINICAB | ||||||||
| DMI-21-T01 | 0.8R | 91-96 | - | - | 19 | 57 | ||
| DMI-21-T02 | 0.8L | 23 | 35 | 136.5 | ||||
| DMI-53-T01 | 0.8R | - | - | 57 | ||||
| DMI-53-T02 | 0.8L | 23 | 35 | 136.5 | ||||
| OUTLANDER | ||||||||
| MI-137-T01 | 2.4 | 4WD | 14- | 27 | 50 | 35 | 375.3 | |
| MI-137-T03 | 2.4 R | 2WD | 08- | Inner 28-2 |
42 | 127 | ||
| MI-137-T04 | 2.4 L | 27 | 40 | 175.5 | ||||
| PAJERO | ||||||||
| DMI-41-T03 | R | - | - | 26 | 62.5 | |||
| DMI-41-T04 | L | 25 | 32 | 172 | ||||

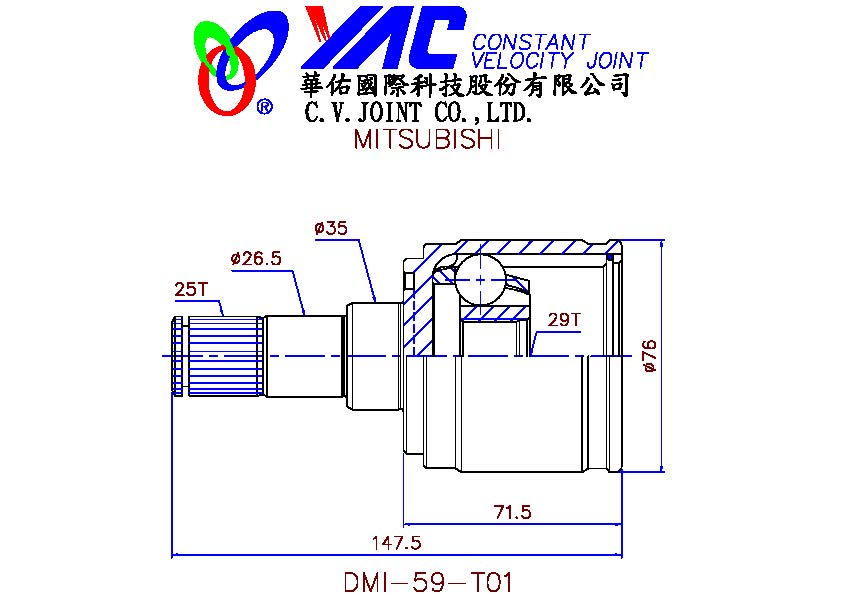

| DMI-59-T01 | 2.0 R | Pinin IO | 00-03 | 35 | 29 | 147.5 | ||
| DMI-82-T01 | - | - | 33 | 62.5 | ||||
| DMI-82-T02 | 28 | 34.7 | 172 | |||||
| MI-85-T01 | 1.8 | 82-96 | 25 | 35 | 30 | 155.5 | ||
| DMI-158-T01 | 2.0 | TR4 | -09 | 32 | 32 | 169.7 | ||
| 02-15 | ||||||||
| 2.0 | Pinin IO | |||||||
| SPACE WAGON | ||||||||
| MI-85-T01 | 1.8 | 82-96 | 25 | 35 | 30 | 155.5 | ||
| THUNDER | ||||||||
| MI-19-55 | R / L | 88-97 | 22 | 35 | 20 | 114 | ||
| VARICA | ||||||||
| DMI-21-T01 | 1.2 R | 4WD | 96- | - | - | 19 | 57 | |
| DMI-21-T02 | 1.2 L | 23 | 35 | 136.5 | ||||
| DMI-53-T01 | 1.2 R | - | - | 57 | ||||
| DMI-53-T02 | 1.2 L | 23 | 35 | 136.5 | ||||
| VIRAGE | ||||||||
| MI-06-T01 | 1.8 | 25 | 41 | 23 | 159.4 | |||
| MI-01-T01 | 25 | 35 | 22 | 149.5 | ||||
| MI-01-T03 | 41 | 149 | ||||||
| MI-06-T02 | 23 | 159.4 | ||||||
| MI-06-T06 | 22 | |||||||
| MI-20-T01 | 35 | 25 | 167 | |||||
| MI-148-T01 | Inner 28-2 |
42 | 33 | 127 | ||||
| MI-151-T01 | 28 | 41 | 181.5 | |||||
| MI-152-T01 | Inner 28-2 |
42 | 502.5 | |||||
| MI-152-T02 | 125.5 | |||||||
