| Inboard C.V.Joint | Car | Engine | AT / MT | Year | A | B | C | D | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| YAC No. | Model | ||||||||||
| BEETLE | |||||||||||
| VW-09-66 | 2.5 D / 2.8 TD | 98-99 | - | - | 30 | 65 | |||||
| VW-09-T01 | 57.5 | ||||||||||
| BORA | |||||||||||
| VW-09-T01 | - | - | 30 | 57.5 | |||||||
| VW-33-T01 | 02- | 26 | 31 | 32 | 157 | ||||||
| GOLF | |||||||||||
| VW-09-T01 | - | - | 30 | 57.5 | |||||||
| VW-32-T01 | V Diesel | 02- | 34 | 84 | |||||||
| VW-33-T01 | 26 | 31 | 32 | 157 | |||||||
| PASSAT | |||||||||||

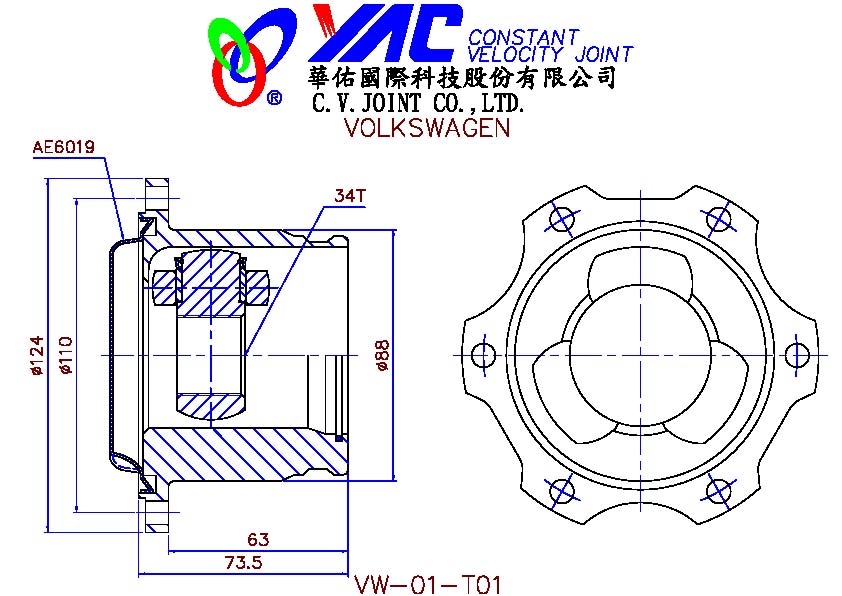

| VW-01-T01 | - | - | 34 | 73.5 | |||||||
| VW-20-T01 | 59 | ||||||||||
| POLO | |||||||||||

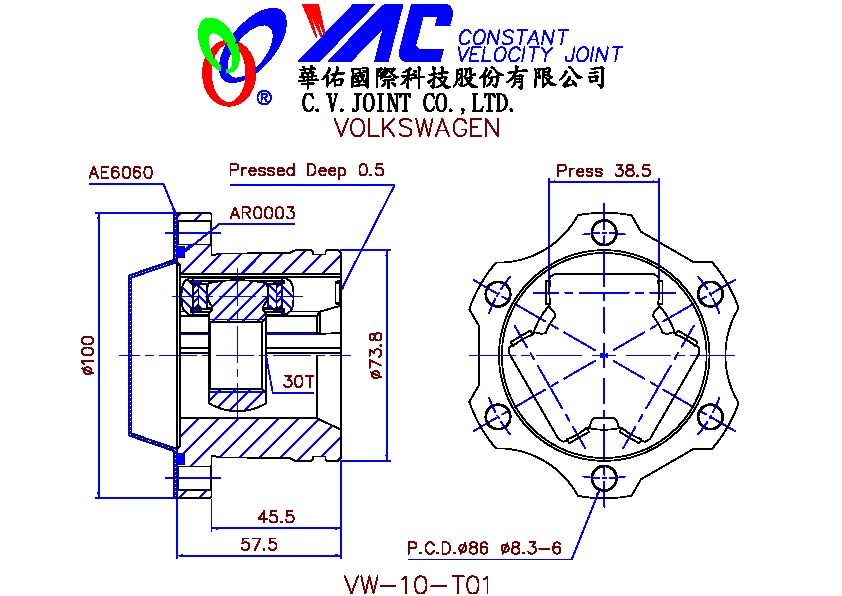

| VW-10-T01 | 1.6 R / L | 96-99 | - | - | 30 | 57.5 | |||||
| VW-36-T02 | 1.6 | 26 | 31 | 22 | 157 | ||||||
| T5 | |||||||||||
| VW-35-T01 | 1.9 | Diesel | Inner 26 |
50 | 28 | 205.4 | |||||
| VW-35-T02 | 37 | 360.2 | |||||||||
| VW-39-T01 | 2.5 | AT | 07- | Inner 26 |
27 | 432 | |||||
| VW-39-T02 | (47.1) | 128 | |||||||||
| VW-39-T04 | 29 | ||||||||||
| VW-45-T01 | 2.0 R | 7 Speed | 10- | 37 | 34.5 | 27 | 526.8 | ||||
| VW-50-T01 | 2.0 TDI | 5 Speed | Inner 26T |
- | 28 | 324.3 | |||||
| T6 | |||||||||||
| VW-45-T03 | 2.0 R | 7 Speed | AT | 15- | 37 | 34.5 | 27 | 526.8 | |||
| TIGUAN | |||||||||||
| VW-46-T02 | 2.0 L | Diesel | 08-14 | 37 | 34.45 | 34 | 148.8 | ||||
| VW-26-T01 | 94- | - | - | 34 | 84 | ||||||
| VW-27-T01 | 26 | 40 | 28 | 160 | |||||||
| VW-28-T01 | Inner 35 |
(42) | 100 | ||||||||
