| Outboard C.V.Joint | Car | Engine | AT/MT | Year | A No. of Outer Teeth |
B Seal Dia mm |
C No. of Inner Teeth |
D Thread |
F Internal Groove |
G Overall Height |
ABS No. of ABS Teeth |
|---|---|---|---|---|---|---|---|---|---|---|---|
| YAC No. | Model | ||||||||||
| ACURA INTEGRA | |||||||||||
| HA-05 | All Models | AT&MT | 85-89 | 26 | 49 | 32 | 22/1.5 | F2 | 134 | 50/100 | |
| HA-11 | DA6/B16A | 1600 Models Ready | 89- | 55 | 134 | 50 | |||||
| HA-21 | ABS | All Models | 90-98 | 28 | 60 | 24/1.5 | 155.5 | ||||
| HA-23 | 26 | 55 | 22/1.5 | 136.5 | |||||||
| ACURA LEGEND | |||||||||||
| HA-14 | 2.5 V6 | 24V C25A | AT&MT | 86-90 | 28 | 60 | 34 | 24/1.5 | F2 | 143.5 | 50 |
| 2.7 V6 | 24V C27A | 87-91 | |||||||||

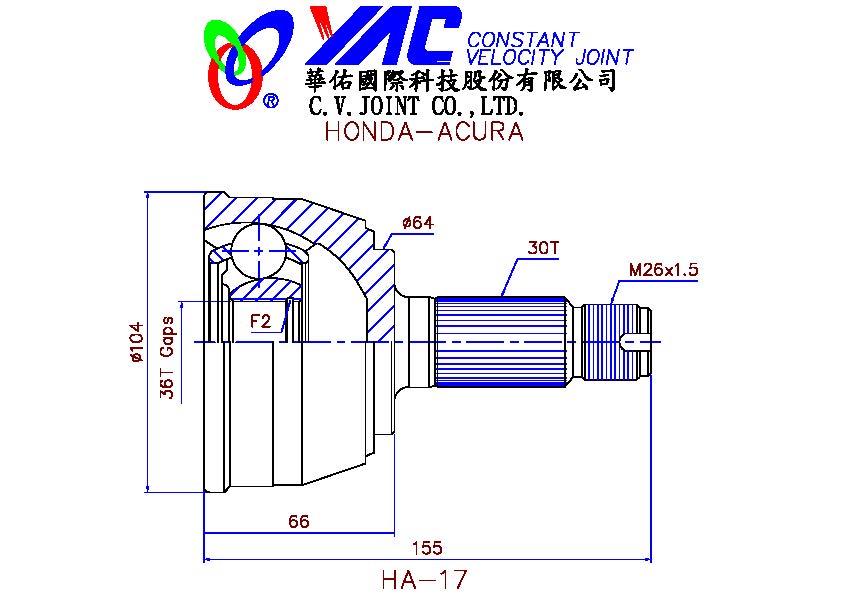

| HA-17 | 3.2 | 91-95 | 30 | 64 | 36 | 26/1.5 | 155 | ||||
| ACURA TL-VIGOR | |||||||||||

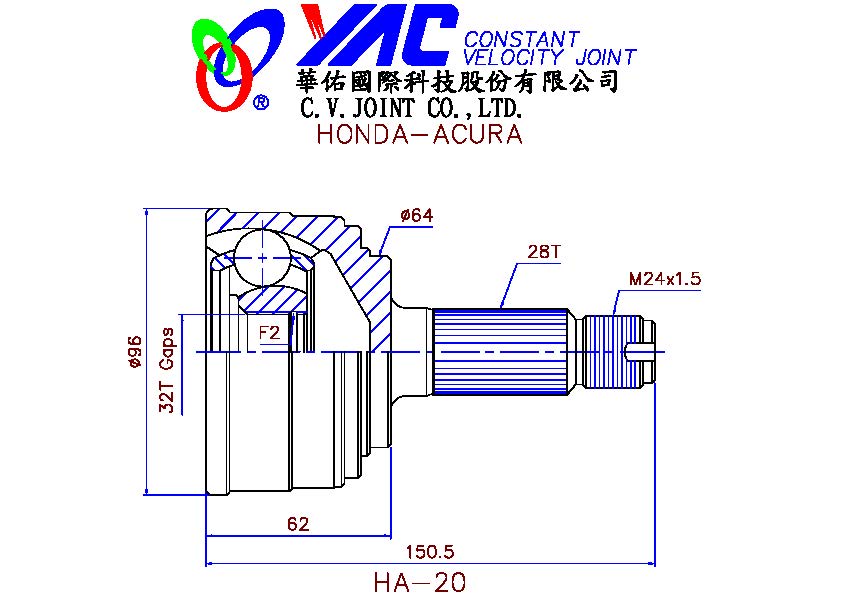

| HA-20 | 2.5 | TL | AT&MT | 95-97 | 28 | 64 | 32 | 24/1.5 | F2 | 150.5 | 50 |

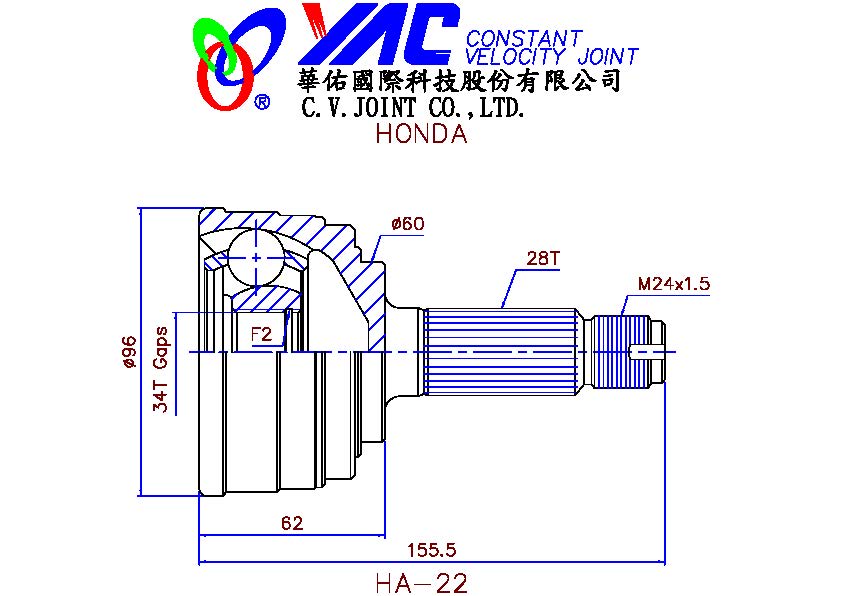

| HA-22 | 92-94 | 60 | 34 | 155.5 | |||||||
| C.V.JOINT CO.,LTD | |
|---|---|
| Factory： | No.200-2,Sec.2,Kwang-Ming Rd.,Hao-Shiou Village,Pu-Yan Hsiang,Changhua,Taiwan,R.O.C. TEL:886-4-865-0926(Rep.) FAX:886-4-865-6238 E-mail:yac106@yac.com.tw www.yac.com.tw |
