| Outboard C.V.Joint | Car | Engine | AT/MT | Year | A No. of Outer Teeth |
B Seal Dia mm |
C No. of Inner Teeth |
D Thread |
F Internal Groove |
G Overall Height |
ABS No. of ABS Teeth |
|---|---|---|---|---|---|---|---|---|---|---|---|
| YAC No. | Model | ||||||||||
| NIVA | |||||||||||
| LA-01 | 1.3/1.6 | 56kw 4×4 | MT | 76-87 | 22 | 56 | 22 | 18/1.5 | F1 | 174 | |
| 1.6 | 54kw | 87-95 | |||||||||
| LA-05 | VAZ-2123 | 24 | 46 | ||||||||
| LARGUS | |||||||||||
| LA-07 | 23 | 49 | 22 | 20/1.5 | F1 | 141.5 | |||||
| LA-08 | 30 | 145 | |||||||||
| OKA | |||||||||||
| LA-03 | 20 | 42 | 19 | 20/1.5 | F2 | 137.5 | |||||
| SAMARA | |||||||||||
| LA-02 | 1.1/1.3/1.5 | MT | 86- | 22 | 50 | 22 | 20/1.5 | F1 | 127.5 | ||

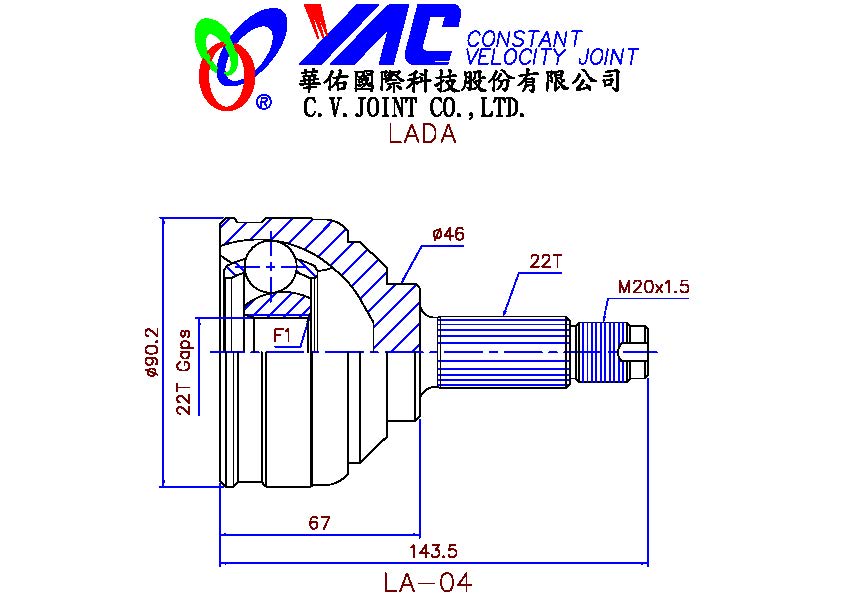

| LA-04 | 22 | 46 | 22 | 20/1.5 | F1 | 143.5 | |||||
