| Outboard C.V.Joint | Car | Engine | AT/MT | Year | A No. of Outer Teeth |
B Seal Dia mm |
C No. of Inner Teeth |
D Thread |
F Internal Groove |
G Overall Height |
ABS No. of ABS Teeth |
|---|---|---|---|---|---|---|---|---|---|---|---|
| YAC No. | Model | ||||||||||
| 504 | |||||||||||
| SB-04 | 2.0 | 73kw | MT | 85-87 | 25 | 54.85 | 25 | 22/1.5 | F3 | 153 | |
| 506 | |||||||||||

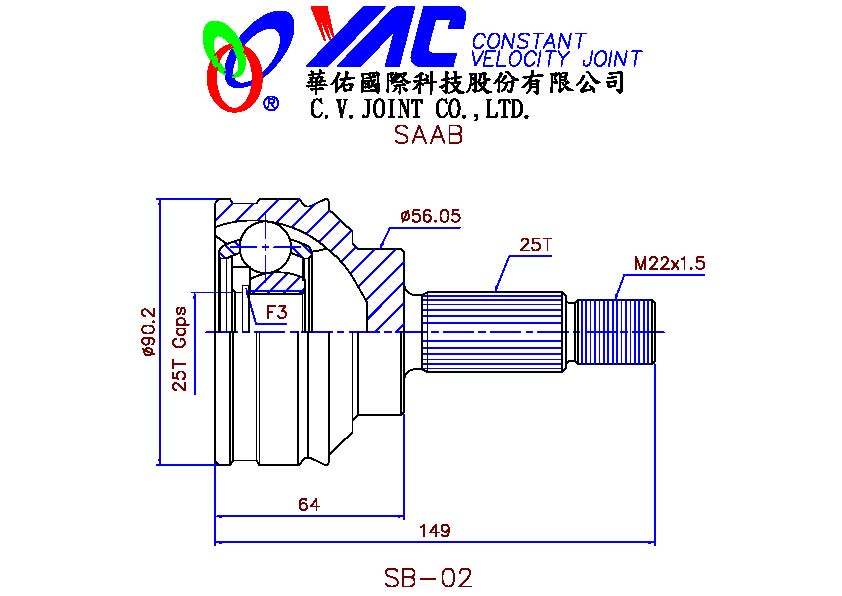

| SB-02 | All Models | MT | 82-84 | 25 | 56 | 25 | 22/1.5 | F3 | 149 | 46/94 | |
| 9-5 | |||||||||||
| SB-07 | 1.9/2.0/2.2/2.3/3.0 | 97-09 | 30 | 59 | 27 | 24/1.5 | F2 | 159 | 29 | ||
| 900 | |||||||||||
| SB-02 | 2.0 B201 | Turbo | AT | 81-87 | 25 | 56 | 25 | 22/1.5 | F3 | 149 | 46/94 |
| 74-81kw 4&5Speed | MT | ||||||||||
| 2.0 B202 | 16V Turbo W/ABS | 84-87 | |||||||||
| SB-06 | 9-3/9-5 | 03-15 | 30 | 55.3 | 28 | 24/1.5 | F2 | 165 | |||
| 9000-9000 CD | |||||||||||
| SB-01 | 2.0 B202 | 16V Turbo | AT&MT | 85-90 | 26 | 56 | 25 | 22/1.5 | F3 | 144 | 46/94 |
| 2.3 B234 | 16V W/ABS | ||||||||||
| SB-03 | All Models | W/ABS | 33 | 52 | 160 | 29 | |||||
| SB-05 | 01- | 59 | 27 | F1 | 158 | ||||||
