| Outboard C.V.Joint | Car | Engine | AT/MT | Year | A No. of Outer Teeth |
B Seal Dia mm |
C No. of Inner Teeth |
D Thread |
F Internal Groove |
G Overall Height |
ABS No. of ABS Teeth |
|---|---|---|---|---|---|---|---|---|---|---|---|
| YAC No. | Model | ||||||||||
| A5 | |||||||||||
| CY-01 | 28 | 55.5 | 30 | 24/1.5 | F1 | 159 | |||||
| EASTAR | |||||||||||
| CY-03 | 28 | 55.5 | 25 | 24/1.5 | F3 | 159 | |||||
| ENVY | |||||||||||
| CY-15 | 28 | (56) | 29 | 24/1.5 | F1 | 159 | |||||

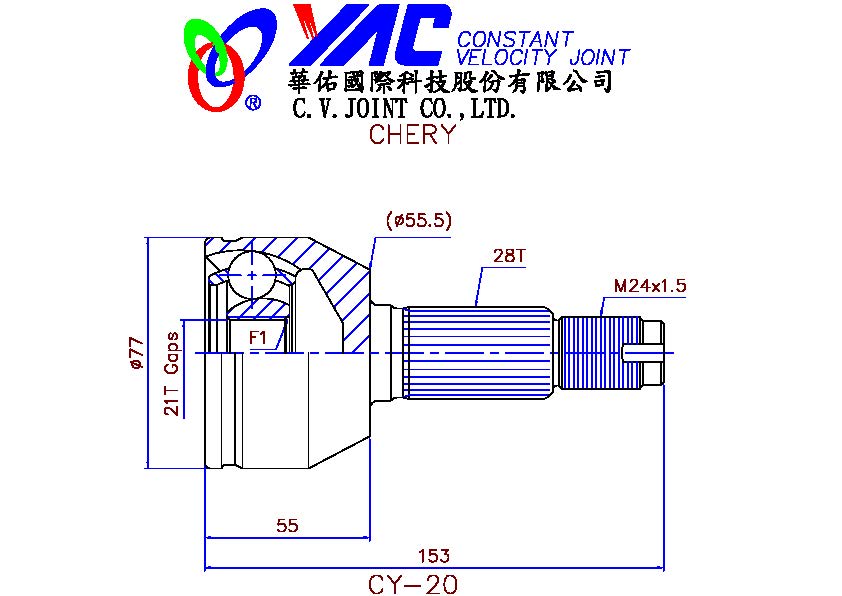

| CY-20 | (55.5) | 21 | 153 | ||||||||
| QQ3 | |||||||||||
| CY-04 | 22 | 51 | 19 | 20/1.5 | F3 | 148 | 40 | ||||
| SPERANZA | |||||||||||
| CY-05 | 26 | 55.4 | 25 | 24/1.5 | F2 | 159 | |||||
| CY-06 | 113 | 23 | 50.9 | 21 | 20/1.5 | F1 | 147 | 43 | |||
| CY-07 | A11 | 22 | 53 | 30 | 139.5 | ||||||
| CY-08 | M11 | 26 | 52 | 32 | 24/1.5 | F3 | 156 | ||||
| CY-13 | A11 | 22 | 53.15 | 20/1.5 | 138 | ||||||
| CY-19 | 56 | 22 | 22/1.5 | F1 | 155.5 | ||||||
| TIGGO | |||||||||||
| CY-02 | 26 | 55.4 | 30 | 24/1.5 | F1 | 159 | 48 | ||||
| CY-05 | 25 | F2 | |||||||||
| CY-10 | 14- | 55.3 | 31 | 165 | 48 | ||||||
| CY-11 | 2.0 | 58 | 30 | 22/1.5 | F1 | 161.5 | |||||
| CY-12 | 1.6 | 25 | F2 | 158 | |||||||
| DO-15 | China | 22 | 51 | 19 | 20/1.5 | F3 | 148 | 44 | |||
| DO-16 | F1 | ||||||||||
