CHEVROLET(INT'L)

Outboard C.V.Joint Car Engine AT/MT Year A
No. of
Outer
Teeth
B
Seal
Dia
mm
C
No. of
Inner
Teeth
D
Thread
F
Internal
Groove
G
Overall
Height
ABS
No. of
ABS
Teeth
YAC No. Model
ASKA
GM-31 Aska       33 57 25 20/1.0 F1 153.5
ASTRO VAN 4WD
GM-10 4WD   AT&MT 89-92 33 77 35 24/2.0 F3 185.5 55
4WD K1500 90-93
4WD K2500  W/ABS 88-95
GM-23 All Front 4WD 97-99 33 73 35 24/2.0 F3 185.5 55
AVEO
GM-40 Aveo       22 52 22 20/1.5 F3 150.5 47
GM-42         22 52 22 20/1.5 F2 150.5
GM-50 13- 25 52.5 30 24/1.5 F1 150
BERETTA-CAVALIER-CORSICA
GM-01 All Models 4-Cyl&(exc. Quad 4) AT&MT 87-88 33 47.6 29 20/1.5 F3 171 48
  All Models   82-
V6 All Models   87-91
4-Cyl All Models   85-90
GM-15 L-Body  3.1 4Speed  ABS AT 94-95 33 47.7 32 20/1.5 F3 171 48
GM-17 L-Body ABS AT 92- 33 47.6 32 20/1.5 F2 171 48
GM-24         27 61.5 29 24/2.0 F3 184
BLAZER-PICK 4WD
GM-09 S-10  4.3   AT&MT 82-96 27 56 34 24/1.5 F3 191
GM-10 Grand Blazer All Models   88-92 33 77 35 24/2.0 F3 185.5 55
GM-22 S-10     97-99 27 56.2 34 24/2.0 F3 191
CAPTIVA

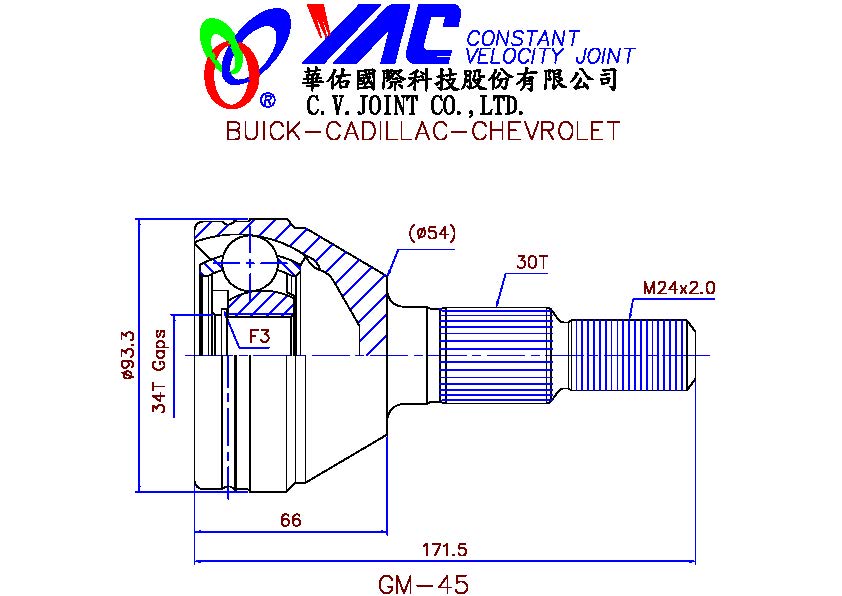

GM-45         30 (54) 34 24/2.0 F3 171.5
CERLEBRITY
GM-01 4-Cyl All Models  3Speed AT 84-87 33 47.6 29 20/1.5 F3 171 48
GM-08 4-Cyl     84- 27 61.5 32 24/2.0 F3 184
  All Models   83-84
GM-27       82-85 33 47.7 23 20/1.5 F1 171 48
GM-28       86-88 33 47.7 24 20/1.5 F1 171 48
COBALT
GM-50 13-17 25 52.5 30 24/1.5 F1 150
CRUZE

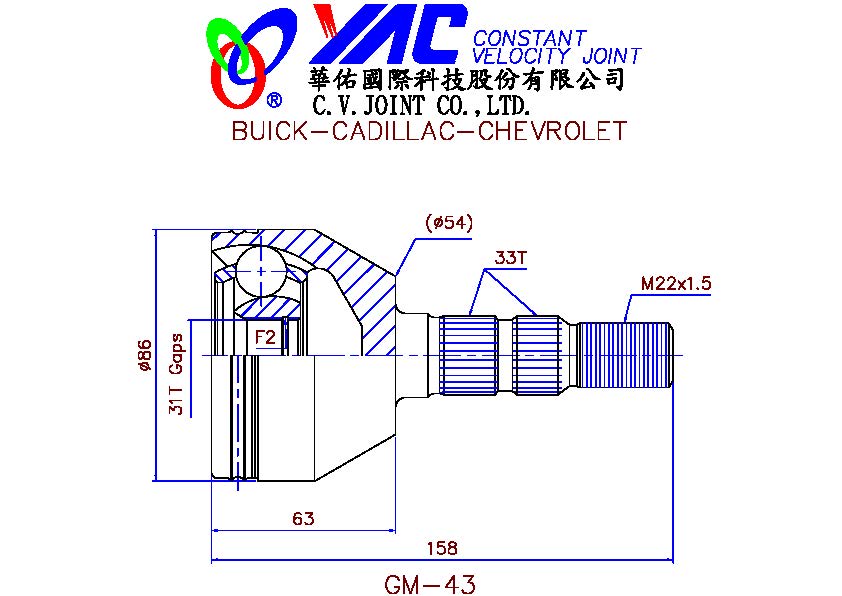

GM-43         33 (54) 31 22/1.5 F2 158
GM-51 2 J300/J305/J308 30 59 34 24/1.5 156.5
LACETTI
DO-12         33 52 22 20/1.5 F3 149.7 47
LOVA
GM-56 China 22 52 22 20/1.5 F2 151.5
MALIBU
GM-51 2.0/2.4 12- 30 59 34 24/1.5 F2 156.5
NOVA
TA-02A 1.6   MT 85-88 26 56 29 19/1.5 F3 157 48
OPTRA
GM-48       15' 33 52 23 20/1.5 F2 149.7 47
PICKUP 4WD FULL
GM-19 All  8600↑ GVW  W/ABS   88-97 33 80 29 24/2.0 F3 201 55
GM-20 All  8600↑ GVW   98/99 33 80 41 24/2.0 F3 201
SONIC
GM-50 13-17 25 52.5 30 24/1.5 F1 150
SPARK
DO-08 M100     98- 23 46 19 18/1.5 F3 148 40
GM-41         23 46 20 20/1.5 F2 148
GM-49 GT       22 52 20 20/1.5 F2 147.5 47
SIL VERADO
GM-19 All  8600↑ GVW  W/ABS   88-97 33 80 29 24/2.0 F3 201 55
GM-20 All  8600↑ GVW   98/99 33 80 41 24/2.0 F3 201
SPECTRUM

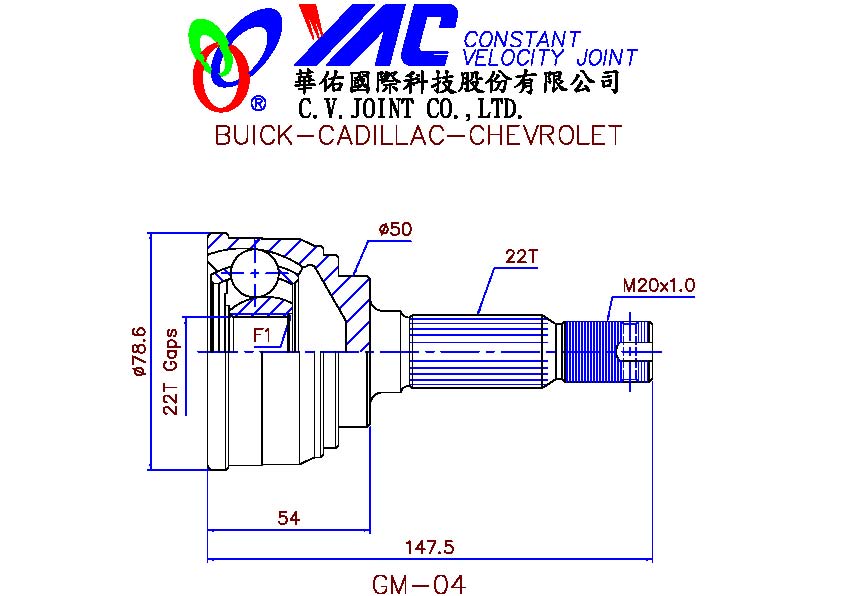

GM-04 1.5 Left AT&MT 85-89 22 50 22 20/1.0 F1 147.5
GM-07 1.5 Right AT&MT 85-89 22 50 21 20/1.0 F2 147.5
SPIN MTA
GM-57 25 52.5 22 24/1.5 F2 147
SUBURBAN 4WD
GM-19 All  8600↑ GVW  W/ABS   88-97 33 80 29 24/2.0 F3 201 55
GM-20 All  8600↑ GVW   98/99 33 80 41 24/2.0 F3 201
TRAX
GM-53 1.8 13- 25 52.5 23 24/1.5 F2 151
T-SERIES
GM-51 09-13 30 59 34 24/1.5 F2 156.5
GM-47         25 49 29 18/1.5 F1 137 43
