FIAT

Outboard C.V.Joint Car Engine AT/MT Year A
No. of
Outer
Teeth
B
Seal
Dia
mm
C
No. of
Inner
Teeth
D
Thread
F
Internal
Groove
G
Overall
Heibht
ABS
No. of
ABS
Teeth
YAC No. Model
127
FT-01 0.9 30/33kw MT 80-87 22 48 20 20/1.5 F3 148
1.3 D   81-87
1.05 Panorama 80-87
1.3 Sport 81-87
FT-03 0.9 30/35kw MT 71-80 20 43 20 20/1.5 F3 149.5
1.05 Sport 78-87
FT-12 900 33kw     22 48 20 20/1.5 F3 150.5
1050 37KW   80-87
128
FT-01 1.1 33/41kw MT 81-82 22 48 20 20/1.5 F3 148
1.3 44kw 81-82
1.3 3P 80-
1.1/1.3 Panorama 81-82
FT-03 1.1 33/41kw MT 69-80 20 43 20 20/1.5 F3 149
1.3 44kw 69-80
1.1/1.3 Coupe 69-80
1.1/1.3 Panorama 69-80
1.3 49kw  Pally 71-80
BARCHETTA(183)
FT-06 1.8  16V 96kw  W/ABS MT 95- 25 52 25 24/1.5 F1 141.5 44/90
CARGO
FT-24 1.2 8V   00- 22 51 22 22/1.5 F2 146
1.3 MJ   03-
1.6 16V   03-
1.9 D   00-
1.9 JTD   01-
CINQUECENTO
FT-05 0.7/0.9   MT 91- 22 46 20 22/1.5 F3 131 44
FT-15 0.7/0.9/1.1       22 46 20 22/1.5 F3 123.5
CORMA(154)
FT-04 2.0 CHT 66kw  AC MT 85-89 25 54.5 25 24/1.5 F1 136
2.0 IE 88kw  AD 87-90
2.0 IE 83kw  AM 86-90
2.0 IE 85kw  AM/LM 87-90
2.0 IE 114kw  Turbo 85-90
2.0 IE 110kw  Turbo AM /LM 87-96
2.0 TD 66kw  LL/PL 89-96
2.5 TD 74kw  AE 85-89
2.5 TD 85kw  LL/PL 89-96
FT-23 1.9 TD     93-96 27 56 25 24/1.5 F1 141 44
2.0 /2.0 Turbo
2.5 D/2.5TD/2.5 V6
DOBLO
FT-24 1.2 8V   00- 22 51 22 22/1.5 F2 146
1.3 MJ   03-
1.6 16V   03-
1.9 D   00-
1.9 JTD   01-
DUCTO
PT-06   All Models MT 87- 28 63 27 28/1.5 F2 175.5 54
DUNA
FT-01 1.1/1.3     87-90 22 48 20 20/1.5 F3 148
1.7D Diesel
ELBA(Brazil)
FT-01 1.3/1.5/1.6     86- 22 48 20 20/1.5 F3 148
FIORINO
FT-01 0.9/1.05      80-87 22 48 20 20/1.5 F3 148
1.1/1.3/1.5 Petrol   71-93
1.3/1.5         147  Diesel                           South America   80-87
1.4/  1.6/1.7 Uno  Diesel   88-93
FT-33 1.3/1.4/1.5/1.6/1.7     93 22 52 20 22/1.5 F3 152
GOLF
FT-11         18 38 18 16/1.5 F3 133
MAREA-MAREA WEEKEND
FT-07 1.6  16V 76kw  ABS AT&MT 96- 25 52 25 24/1.5 F3 141.5 44/90
1.8  16V 83kw  ABS MT 96-
1.8 83kw  ABS 96-99
1.9  Turbo 55/74kw  ABS Diesel 96-99
1.9  Turbo Diesel 96-
1.9  Turbo Diesel Soft ABS 96-
FT-10 1.6  16V 76kw MT 96-99 22 52 22 22/1.5 F3 150
FT-14 1.6     96-99 22 52 22 24/1.5 F3 142 44
FT-17 2.4  JTD       25 59 28 24/1.5 F3 147.5
MARENGO
FT-01 1.9D       22 48 20 20/1.5 F3 148
NUOVO-DUCATO 230-280 -290
PT-06   All Models MT 90- 28 63 27 28/1.5 F2 175.5 54
PT-07 ABS All Models 94- 28 63 39 28/1.5 F1 175.5 54
PT-08 ABS All Models 94- 35 70 45 33/1.5 F1 189.5 54
PALIO-PALIO WEEKEND
FT-08 1.0 ED 3P   96- 22 52 20 22/1.5 F3 150
1.0 EDX 3P
1.0 EDX 5P
1.2/1.2 SW 54kw
FT-22 1.9D     01- 22 51 21 22/1.5 F2 133.5

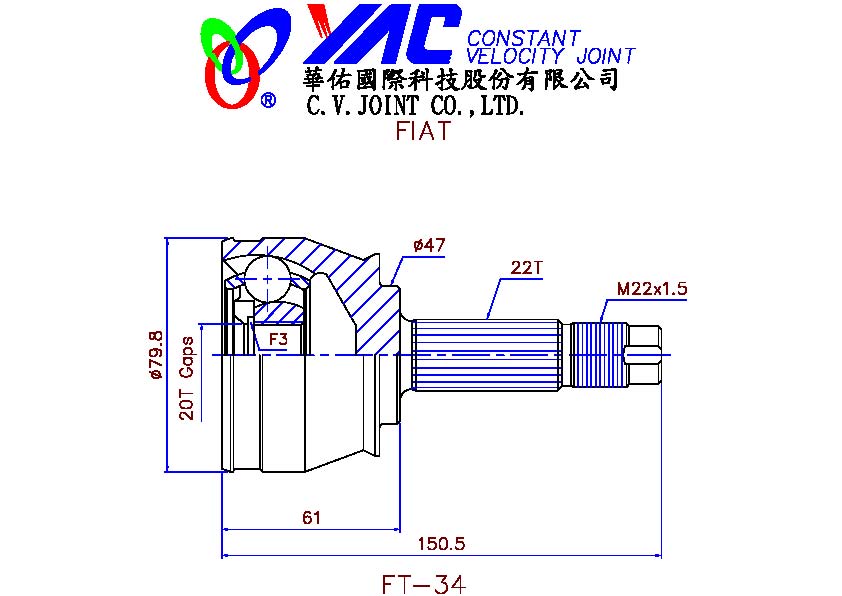

FT-34         22 47 20 22/1.5 F3 150.5
PANDA
FT-03 1.3 D Diesel 86- 20 43 20 20/1.5 F3 149.5
30 650/750 80-
34 850 80-
45 900/1000 80-
4 × 4 All Models 83-85
4 × 4  1000 All Models 86-
PREMIO
FT-12 1.3/1.5     85- 22 48 20 20/1.5 F3 150.5
1.6     90-
PREMIO(Brazil)
FT-01 1.3/1.5     85- 22 48 20 20/1.5 F3 148
1.6     90-
PUNTO
FT-05 1.7 Diesel 60/75/90 MPI W/ABS MT 93- 22 46 20 22/1.5 F3 131 44
55/60/70/85 SPI                             55/EL/SX/ 5Speed  W/ABS
FT-14 1.7     96-99 22 52 22 24/1.5 F3 142 44
FT-21 1.7 TDS     96-99 22 46 22 22/1.5 F3 131
FT-29 1.2/1.9       22 51 21 22/1.5 F2 133.5
FT-30         25 51 25 24/1.5 F3 143
REGATA
FT-01 1.3/1.7D /19D MT 83-90 22 48 20 20/1.5 F3 148
70 /70S/70ES/75/85S
FT-02 1.5/1.6   AT 83-90 22 48.1 25 20/1.5 F1 148
1.9 Turbo DS MT
FT-12 1.7 D  60 43-44kw   83-90 22 48 20 20/1.5 F3 150.5
1.9 D  65 48kw
1.3  70 48-55kw
1.5  75/85 55-60kw  Super MT
1.6  85 60kw
RITMO
FT-01 1.1/1.3   MT 78-87 22 48 20 20/1.5 F3 148
1.5   AT 80-87
1.7 D Diesel MT 80-87
75   AT 80-
CL Strada MT 78-87
  Super Nuova MT 82-87
FT-02 1.5   AT 78-80 22 48.1 25 20/1.5 F1 148
1.5   MT 78-87
1.6 105TC MT 81-87
1.9 Turbo DS MT 86-87
75 L/CL AT 80-
  All Models AT 78-80
  Nuova AT 82-87
FT-04 125 TC MT 81- 25 54.5 25 24/1.5 F1 136
FT-12 1.0D  60 44kw MT 78-82 22 48 20 20/1.5 F3 150.5
1.1  65 40-43kw MT 83-87
1.3  65 50kw MT 83-85
1.3  65-75 48-55kw AT 78-82
1.5ie  75 55kw MT 83-87
1.55  75-85 55-60kw MT 85-88
1.7D  55 40-43kw MT 79-82
1.7D  60 43-44kw AT 83-87
SIECTRA
FT-31   Diesel     22 50.9 22 22/1.5 F2 145
SIENNA
FT-35   Diesel     22 47 22 22/1.5 F3 150.5
STARDA
FT-04 125 TC MT 81- 25 54.5 25 24/1.5 F1 136
STILO
FT-16 2.4  20V       25 59 26 24/1.5 F2 147.5
FT-18 1.8  16V       25 59 25 24/1.5 F3 142

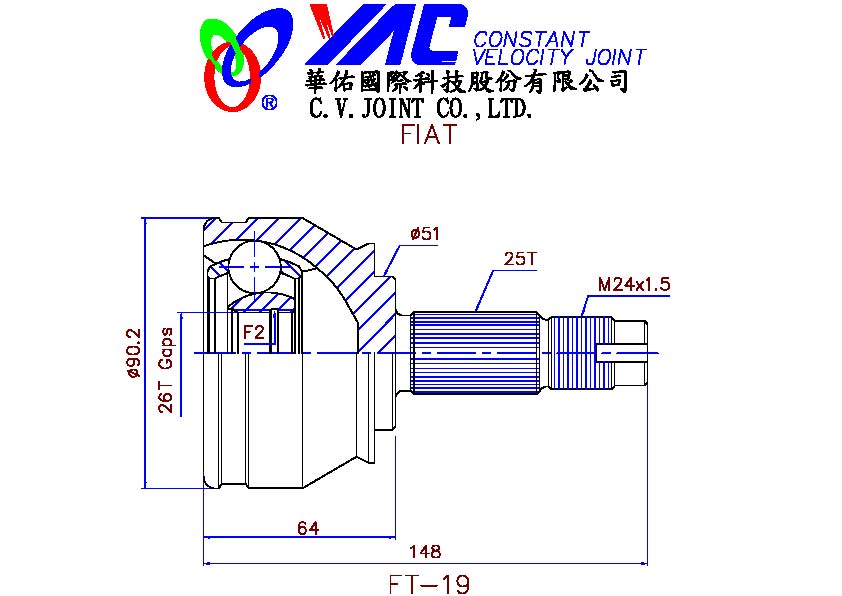

FT-19 1.9  JTD       25 51 26 24/1.5 F2 148
FT-20 1.6  16V       25 51 22 24/1.5 F2 140.5
FT-22 1.2/1.4     01- 22 51 21 22/1.5 F2 133.5
FT-29 1.2     01- 22 51 21 22/1.5 F2 133.5
TAVRIA
FT-09         22 42 22 18/1.5 F1 158
TEMPRA-TIPO
FT-05 1.4/1.5/1.6 Exc.1.6 TC/ATC MT 88- 22 46 20 22/1.5 F3 131 44
1.7 /1.9 Exc.Turbo Diesel  W/ABS
FT-32 1.8/1.9 TD     90-96 25 52 25 24/1.5 F1 142
VRAVO-BRAVA
FT-07 1.9 TD 55/74kw  ABS   96-98 25 52 25 24/1.5 F3 141.5 44/90
FT-21 1.4/1.4i 12V/ 1.4i 16V   95- 22 46 22 22/1.5 F3 131
1.6 16V     95-99

FT-13         22 47 22 22/1.5 F3 150
FT-25         25 51 24 24/1.5 F2 152
FT-26         25 51 24 24/1.5 F2 146.5
FT-27         22 47 20 22/1.5 F2 129
